Product information
| Feature | Specification |
|---|---|
| Wireless Microphone System | |
| Transmission Type | 2.4GHz ISM Frequency |
| Modulation | GFSK |
| Operating Range | Up to 328ft (100m) (without obstacle) |
| RF Output Power | <10mW |
| Polar Pattern | Omnidirectional |
| Frequency Response | 35Hz-18KHz |
| Maximum SPL | 120dB SPL |
| Sensitivity | -39dB |
| SNR | >77 dB |
| Transmitter (BY-XM6 TX Mini) | |
| Power Requirements | Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
| Built-in Battery Life | Approx. 4.5 hours |
| Antenna | PIFA Antenna |
| Audio Inputs | Built-in Microphone |
| Weight | Approx. 14.5g (0.5oz) |
| Dimensions | 46×23.92x15mm |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to +55°C |
| Receiver (BY-XM6 RX) | |
| Audio Output Connector | 3.5mm Headphone Jack / 3.5mm TRS Output Jack |
| Audio Output Level | -60 dBV to -20dBV |
| Power Requirements | Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
| Built-in Battery Life | Approx. 7 hours |
| Antenna | PIFA Antenna |
| Weight | Approx. 32g (1.13oz) |
| Dimensions | 62.1×31.6×16.5mm |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to +55°C |

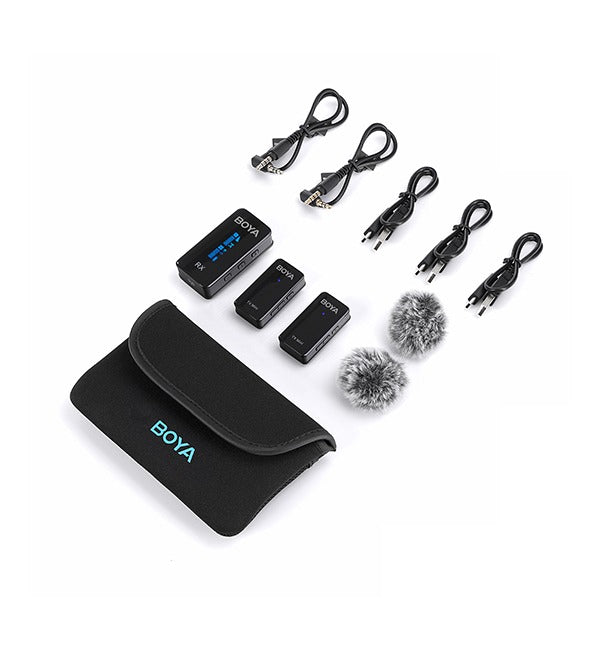

| Packing List | |
| BY-XM6 TX Mini Transmitter | 2 |
| BY-XM6 RX Receiver | 1 |
| USB-C Charging Cable | 3 |
| Fur Windshield for Built-in Microphone | 2 |
| 3.5mm TRS to TRS Output Cable for Camera | 1 |
| 3.5mm TRS to TRRS Output Cable for Smartphones | 1 |
