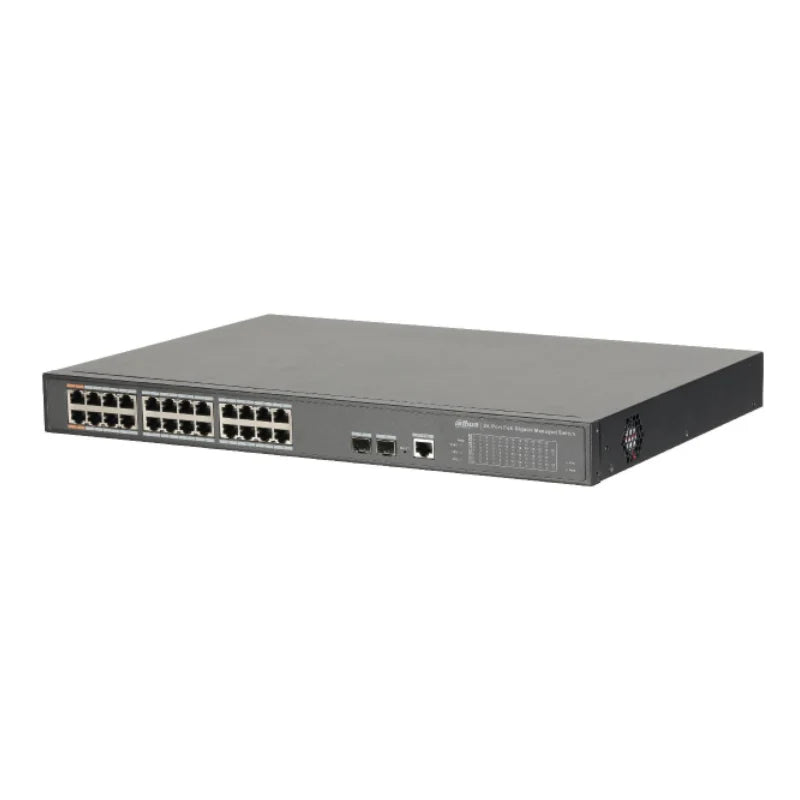

Dahua 24-Port PoE Gigabit Managed Switch - 24 Ports / Managed - Switch

The Dahua DH-PFS4226-24GT-240 is a high-performance 24-port managed Gigabit Ethernet switch designed to provide reliable network connectivity and power to PoE (Power over Ethernet) devices. With 24 PoE ports and 2 SFP uplink ports, this switch is ideal for medium to large-scale deployments, surveillance systems, and environments requiring both data and power delivery over a single Ethernet cable. Compliant with IEEE 802.3af/at and Hi-PoE standards, it ensures seamless integration with PoE devices such as IP cameras, VoIP phones, and wireless access points.

Key Features:

1. 24 PoE Ports with Gigabit Ethernet:

   • Supports 24 PoE ports with 10/100/1000Mbps data transmission, delivering up to 30W per port (Ports 3–24), 60W per port (Ports 1–2), and a total PoE budget of 240W.

   • Compliant with IEEE 802.3af/at and Hi-PoE standards, ensuring compatibility with a wide range of PoE devices.

2. 2 SFP Uplink Ports for Network Expansion:

   • Features 2 SFP uplink ports with 100/1000Mbps connectivity for network expansion and integration with other switches or routers.

3. Advanced Management Features:

   • Web management interface with HTTP/HTTPS protocols, CLI, and SNMP V1/V2C/V3 for easy configuration and monitoring.

   • Supports VLAN, link aggregation, STP/RSTP/MSTP, and multicast for enhanced network management.

4. High Switching Capacity:

   • Switching capacity of 52 Gbps and packet forwarding rate of 38.688 Mpps for efficient data handling.

   • Supports jumbo frames and port isolation for improved network performance and security.

5. Enhanced Network Security:

   • Features IEEE 802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL for secure network access and management.

   • Supports ACL, IP source guard, ARP inspection, and loop protection for robust security.

6. Energy-Efficient Design:

   • Low power consumption for energy-efficient operation, reducing operational costs.

7. Durable and Reliable:

   • Designed to operate in a wide temperature range (-10°C to +55°C) and humidity levels (5%–95%).

   • Features lightning protection (2kV common mode, 1kV differential mode) for enhanced durability.

8. Flexible Installation Options:

   • Supports desktop and rack mounting for versatile installation in various environments.

Technical Specifications:

• Data Transmission Ports:

  • 24 PoE ports: 10/100/1000Mbps Base-TX.

  • 2 SFP uplink ports: 100/1000Mbps.

• Power Supply: AC 100–240V, 50/60 Hz.

• PoE:

  • PoE Budget: ≤30W per port (Ports 3–24), ≤60W per port (Ports 1–2), ≤240W total.

  • Standards: IEEE 802.3af, IEEE 802.3at, Hi-PoE.

• Performance:

  • Switching Capacity: 52 Gbps.

  • Packet Forwarding Rate: 38.688 Mpps.

  • Packet Buffer Memory: 4 Mb.

  • MAC Table Size: 8K.

  • VLAN Number: 4K.

  • IPv4 Routes: 16.

• Environmental:

  • Operating Temperature: -10°C to +55°C (14°F to 131°F).

  • Operating Humidity: 5%–95%.

  • Storage Temperature: -20°C to +70°C (-4°F to 158°F).

  • Storage Humidity: 5%–95%.

• Power Consumption: 240W.

• Physical:

  • Dimensions (W × D × H): 440mm × 300mm × 44mm (17.32" × 11.81" × 1.73").

  • Net Weight: 3.1 kg (6.83 lb).

  • Gross Weight: 3.7 kg (8.16 lb).

• Certifications: CE, FCC.

Applications:

• Surveillance Systems: Powers and connects multiple IP cameras for medium to large-scale surveillance setups.

• VoIP Networks: Supports VoIP phones for clear and reliable communication.

• Wireless Networks: Connects and powers wireless access points for seamless Wi-Fi coverage.

• Office Networks: Ideal for network expansion and PoE device integration in office environments.

• Data Centers: Suitable for small to medium data centers requiring reliable and high-speed network connectivity.

Why Choose the Dahua DH-PFS4226-24GT-240?

The Dahua DH-PFS4226-24GT-240 24-Port PoE Gigabit Managed Switch is a reliable and cost-effective solution for powering and connecting multiple PoE devices. With its 24 PoE ports, high switching capacity, and advanced management features, it ensures seamless network performance and flexibility. Its enhanced security features, robust build, and compliance with industry standards make it an excellent choice for medium to large-scale deployments, surveillance systems, and office environments.
