Product information
| Brand | Honeywell |

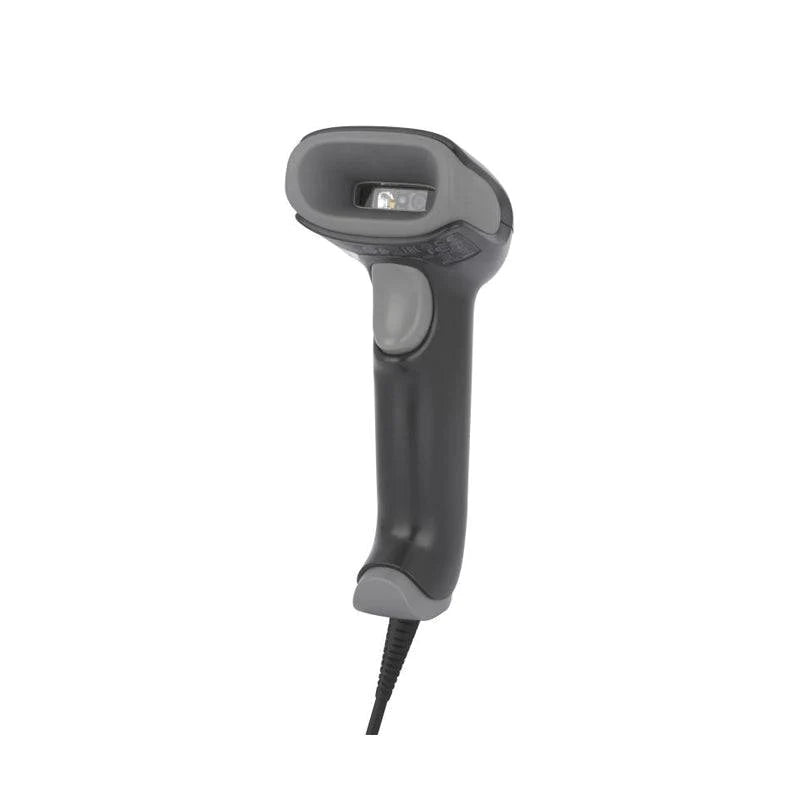

| Model | Honeywell 1470g Barcode Scanner |
| Product Type | Barcode Scanner - Handheld |
| Connectivity Technology | Wired |
| Color | Black |
| Scan Element Type | 2D Imager - Red LED |
| Sensor Resolution | 1040 x 720 |
| Scan Mode | Single-Pass |
| Skew (Degrees) | 70° |
| Pitch (Degrees) | 65° |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Pharmacode 39, Code 93, Matrix 2 of 5, Code 39, ISBT 128, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, TLC39, China Post, Korea Post, Codablock F, UPC-E1, UPC-E0, MacroPDF417, Hong Kong 2 of 5, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Composites, Codablock A, MSI, GS1-128, NEC 2 of 5, Straight 2 of 5, Han Xin |
| Interface Type | USB |
| Barcode Symbology Supported | Reads Standard 1D, PDF, 2D, and DotCode Symbologies |
| TTL Decoding | Decoded |
| OK Notification | Beeper, LED indicator, Vibration |
| Drop Specification | 1.8 m to Concrete |
| Power Consumption | 2 Watt |
| Electric Current Required | 400 mA (operating), 90 mA (standby) |
| Features | ESD (electrostatic discharge) Safe, Disinfectant Ready Housing |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Dimensions (W x D x H) | 60 x 82 x 16.9 mm |
| Weight | 130 g |
| Warranty | One Year |
