Logitech Rally Mounting Kit – Custom Brackets for Camera, Speakers, Hubs & Cable Management

Logitech Rally Mounting Kit – Custom Brackets for Secure and Streamlined Installation of Rally and Rally Plus Systems

The Logitech Rally Mounting Kit is a complete set of custom-designed brackets and hardware engineered to provide a professional, clean, and secure installation of your Logitech Rally or Rally Plus video conferencing system. Whether you're outfitting a boardroom, huddle space, or training area, this kit ensures every component is mounted safely and with a polished, cable-managed appearance.

From camera and speaker placement to hub positioning and cable retention, the mounting kit enables flexible installation options that enhance both the performance and the aesthetics of your meeting room. It supports wall-mounting and under-table configurations, while ensuring proper airflow for heat management and long-term reliability.

Ideal for IT teams, system integrators, and facility managers looking to maintain organization, functionality, and visual appeal, the Rally Mounting Kit turns any Logitech Rally setup into a professional-grade, permanently installed solution.

Key Features:

Inverted or Standard Camera Mounting

The included camera bracket provides multiple mounting options, allowing you to secure the Rally Camera either above or below the display for optimal eye-level engagement or inverted near the ceiling for a wide, panoramic view in larger rooms.

• Adjustable design for flexible positioning

• Secure tripod screw and 3-point pin system for camera stability

• Enhances natural sight lines for remote participants

Sleek Low-Profile Speaker Brackets

Mount Rally speakers directly to either side of the display using two discreet, low-profile brackets. This not only complements modern room designs but also ensures the speakers are positioned for clear, immersive sound delivery.

• "Floating" visual appearance for seamless integration

• Allows speakers to perform optimally without obstruction

• Sleek metallic finish matches Rally system aesthetics

Ventilated Mounts for Display Hub & Table Hub

The ventilated brackets included for the Rally Display Hub and Table Hub are designed for wall or under-table installation. These mounts include elevated standoffs to allow for proper airflow and heat dissipation, maintaining reliable system operation.

• Keeps hub devices cool and concealed

• Versatile positioning for different room layouts

• Easy access for servicing or adjustments

Cable Retention Brackets for Secure Connections

Avoid accidental disconnections and messy cable setups with the included cable retainer brackets. Each two-piece bracket is placed near the Display Hub and Table Hub to secure AV, power, and data cables, ensuring a neat and reliable setup.

• Prevents unplugging during use or maintenance

• Reduces cable strain and potential wear

• Promotes long-term reliability and reduced IT support needs

Technical Specifications:

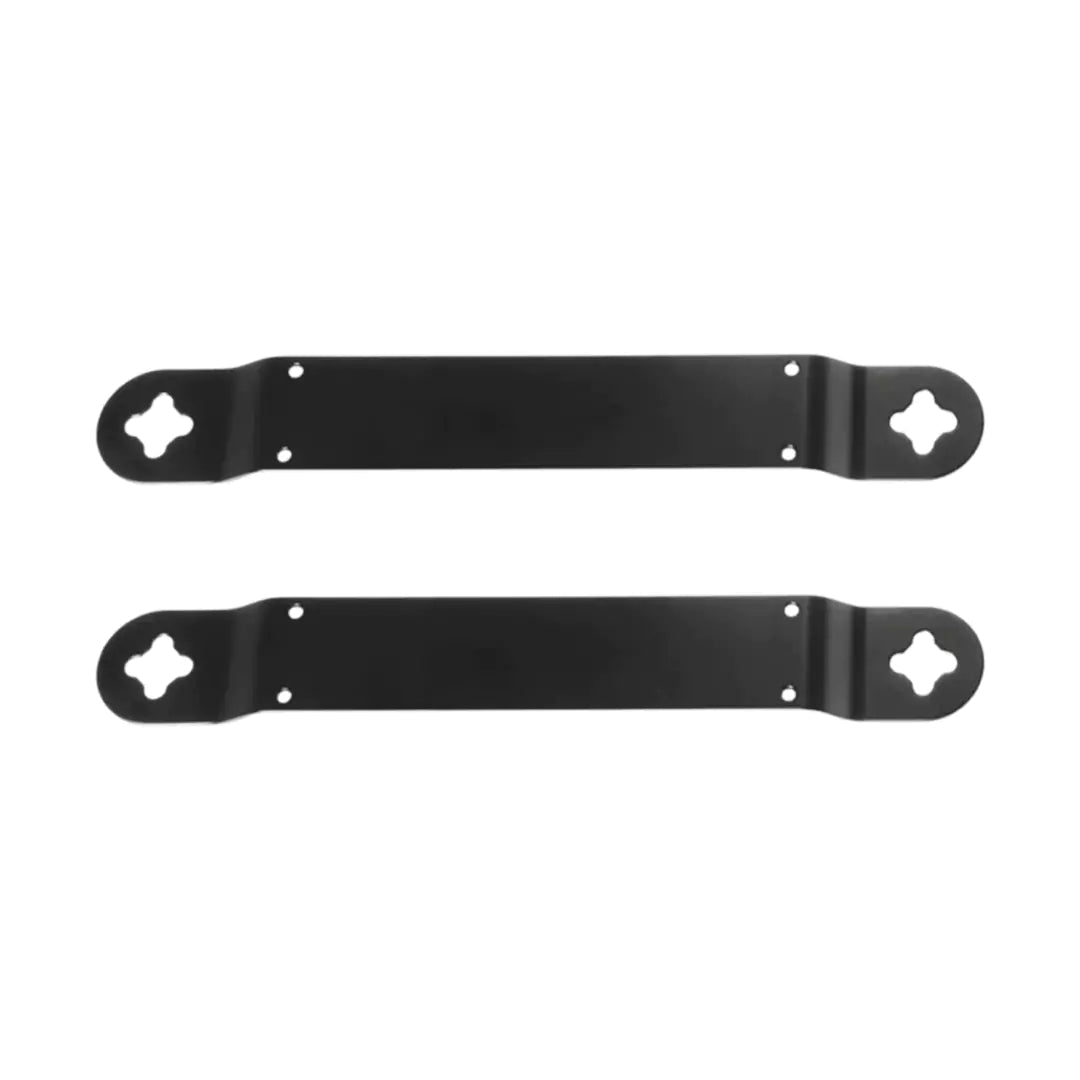

Speaker Brackets (2)

• Height: 1.42 in (36 mm)

• Width: 10.47 in (266 mm)

• Depth: 0.31 in (8 mm)

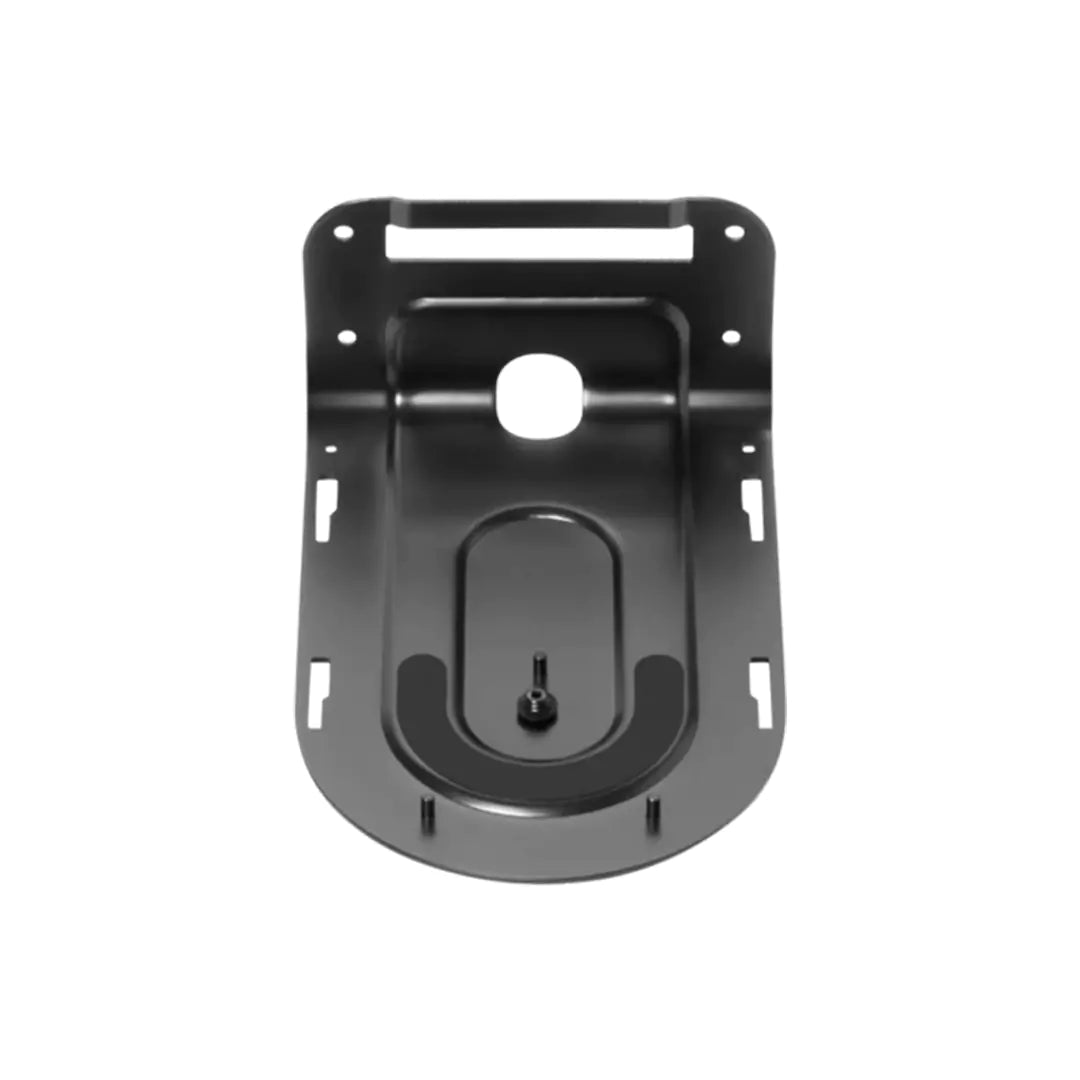

Camera Bracket

• Height: 2.48 in (63 mm)

• Width: 4.29 in (109 mm)

• Depth: 6.54 in (166 mm)

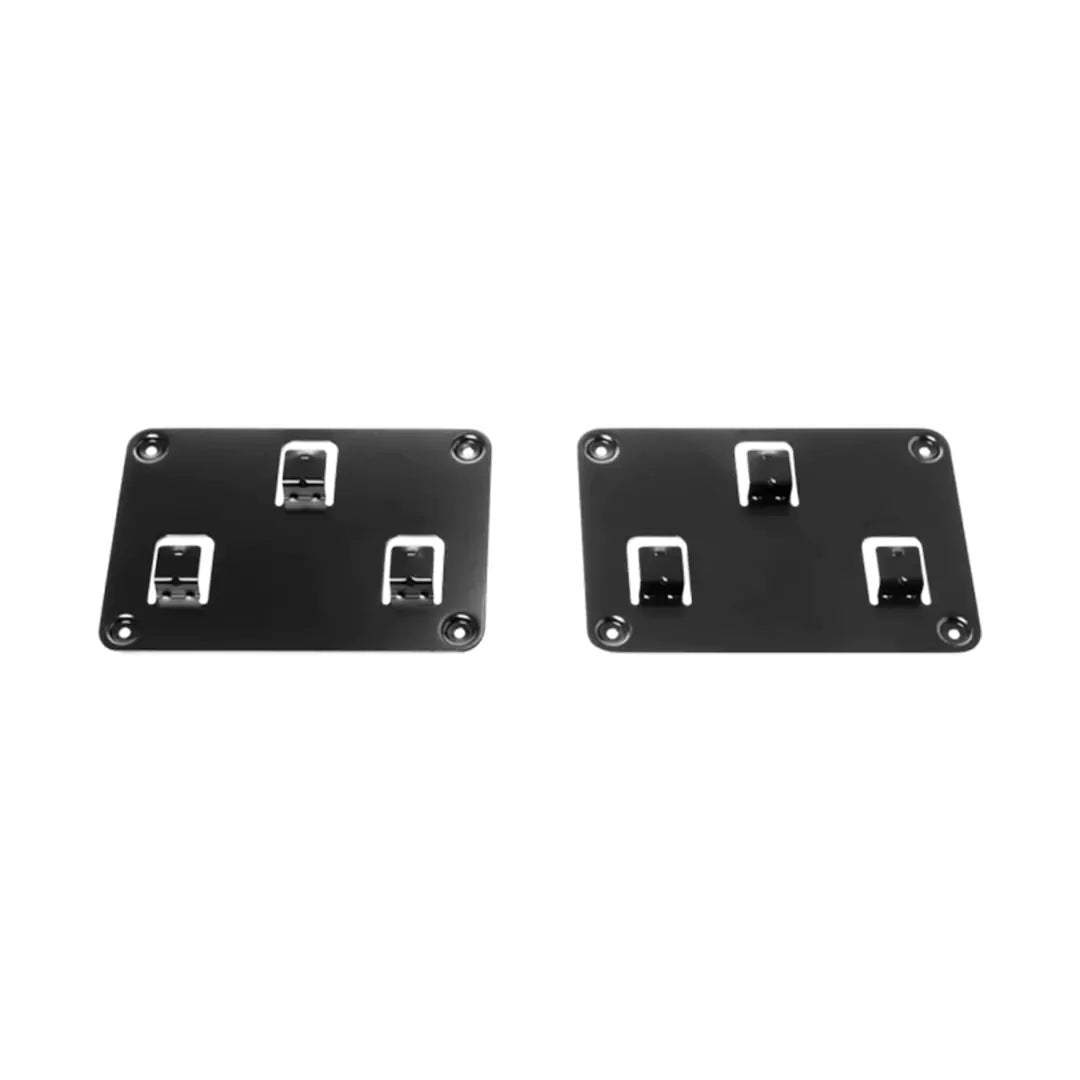

Table Hub Bracket / Display Hub Bracket

• Height: 0.47 in (12 mm)

• Width: 6.46 in (164 mm)

• Depth: 4.53 in (115 mm)

Cable Retainers (2)

• Height: 0.91 in (23 mm)

• Width: 6.46 in (164 mm)

• Depth: 1.50 in (38 mm)

Compatibility:

• Designed exclusively for:

  • Logitech Rally

  • Logitech Rally Plus

Note: This kit is not compatible with the standalone USB Rally Camera, which includes its own mounting system.

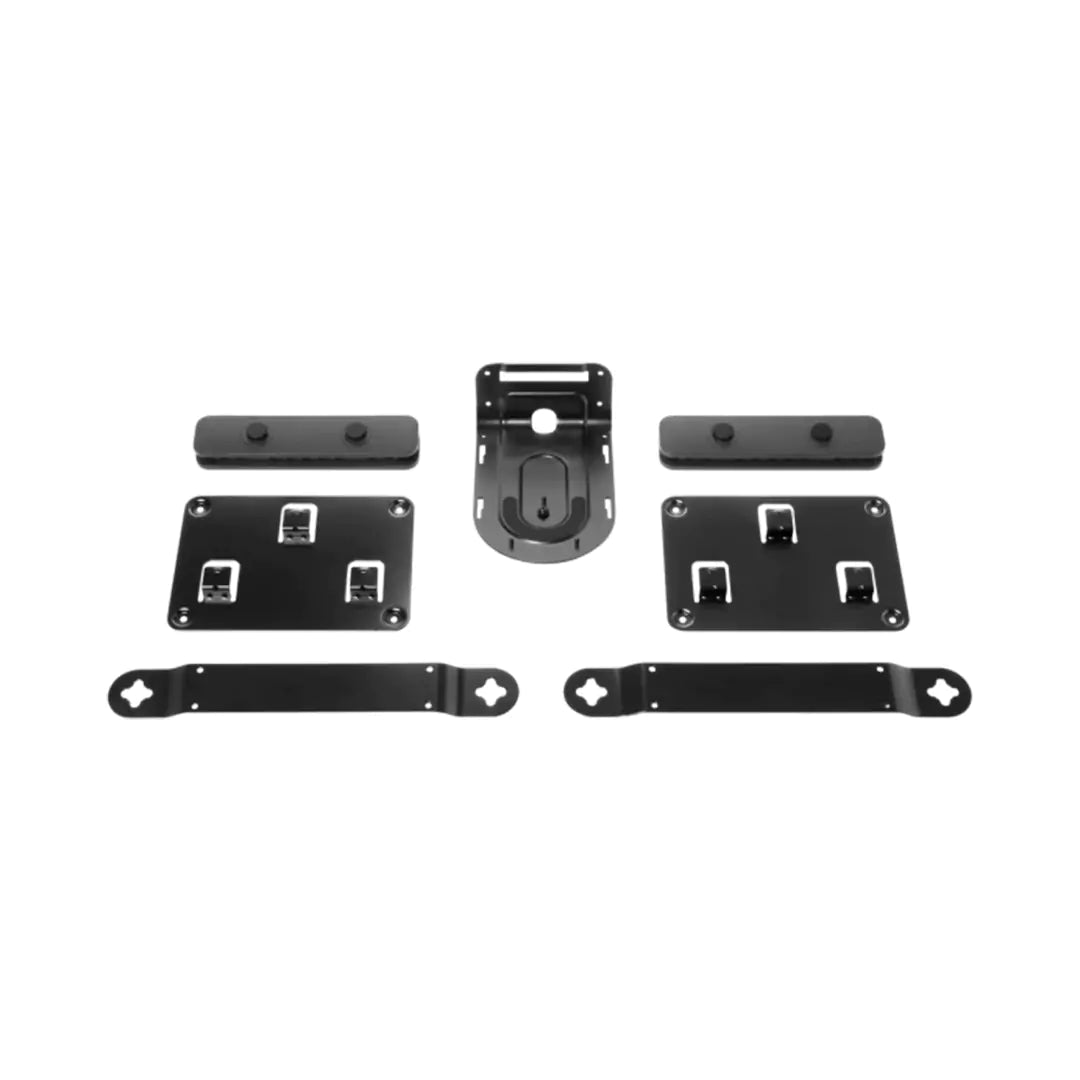

What's in the Box:

• 2 x Speaker Brackets

• 1 x Camera Bracket

• 1 x Table Hub Bracket

• 1 x Display Hub Bracket

• 2 x Cable Retainers

• Mounting Fasteners

• Setup Documentation

Why Choose the Logitech Rally Mounting Kit?

• Provides a complete, clutter-free installation for Logitech Rally setups

• Enhances functionality, organization, and airflow for better system performance

• Ensures all components are secure, easy to manage, and professionally installed

• Ideal for corporate boardrooms, classrooms, and enterprise conferencing spaces

• Backed by Logitech’s 2-Year Limited Hardware Warranty

The Logitech Rally Mounting Kit is the perfect solution for organizations seeking a clean, secure, and visually refined video conferencing setup. It brings order and elegance to your installation while ensuring that every component of your Logitech Rally system is optimally positioned and protected.
