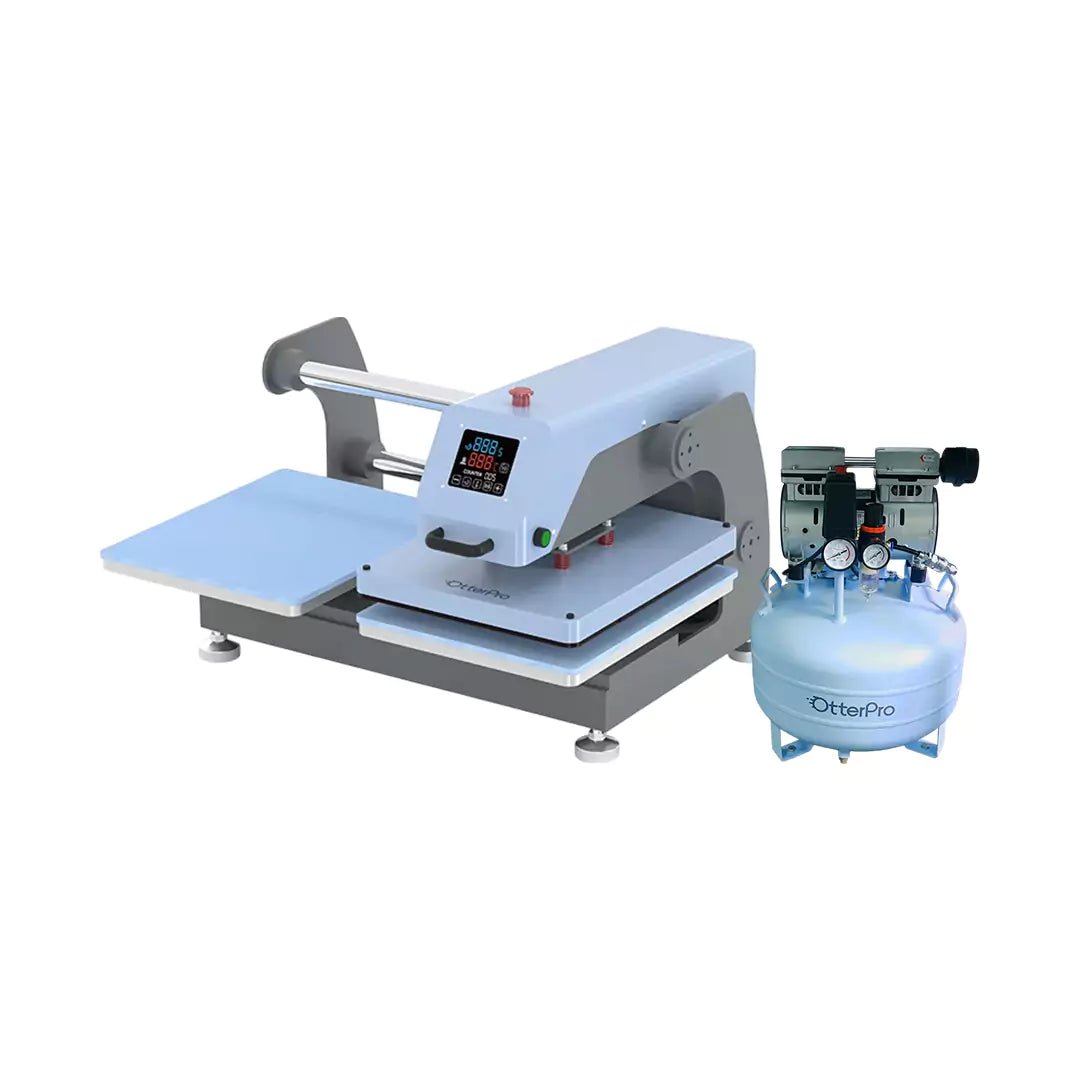

OtterPro Air Press Slide Dual Station Heat Press with 30L Silent Air Compressor – Professional Heat Transfer System for High-Volume Production
The OtterPro Air Press Slide Dual Station Heat Press combined with the OtterPro 30L Silent Air Compressor forms a complete, high-performance heat transfer solution designed for commercial garment printing, sublimation, and textile customization. This industrial-grade setup ensures maximum productivity, precision, and durability for businesses requiring continuous operation.

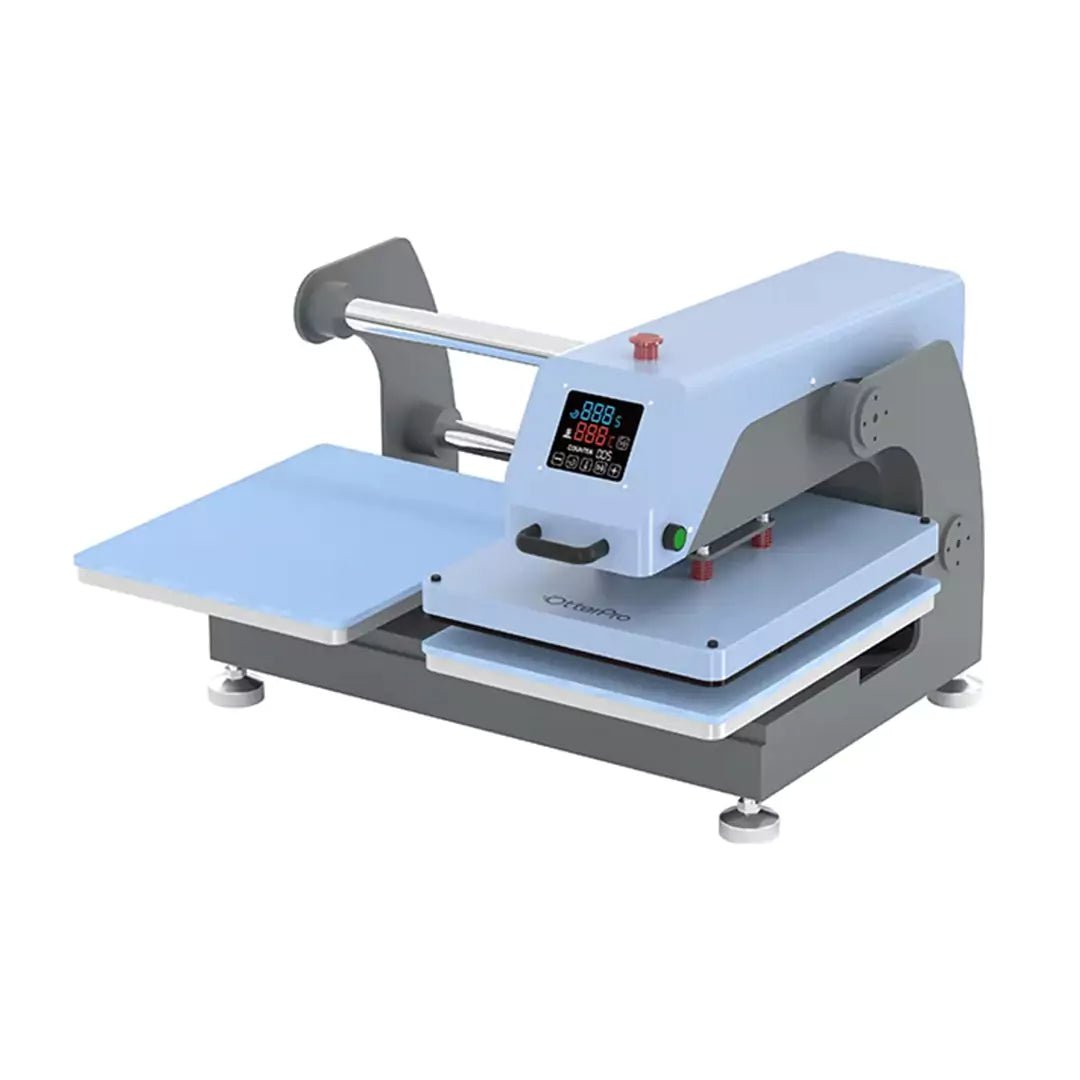

Dual-Station Heat Press (40x50cm / 16"x20") – Key Features

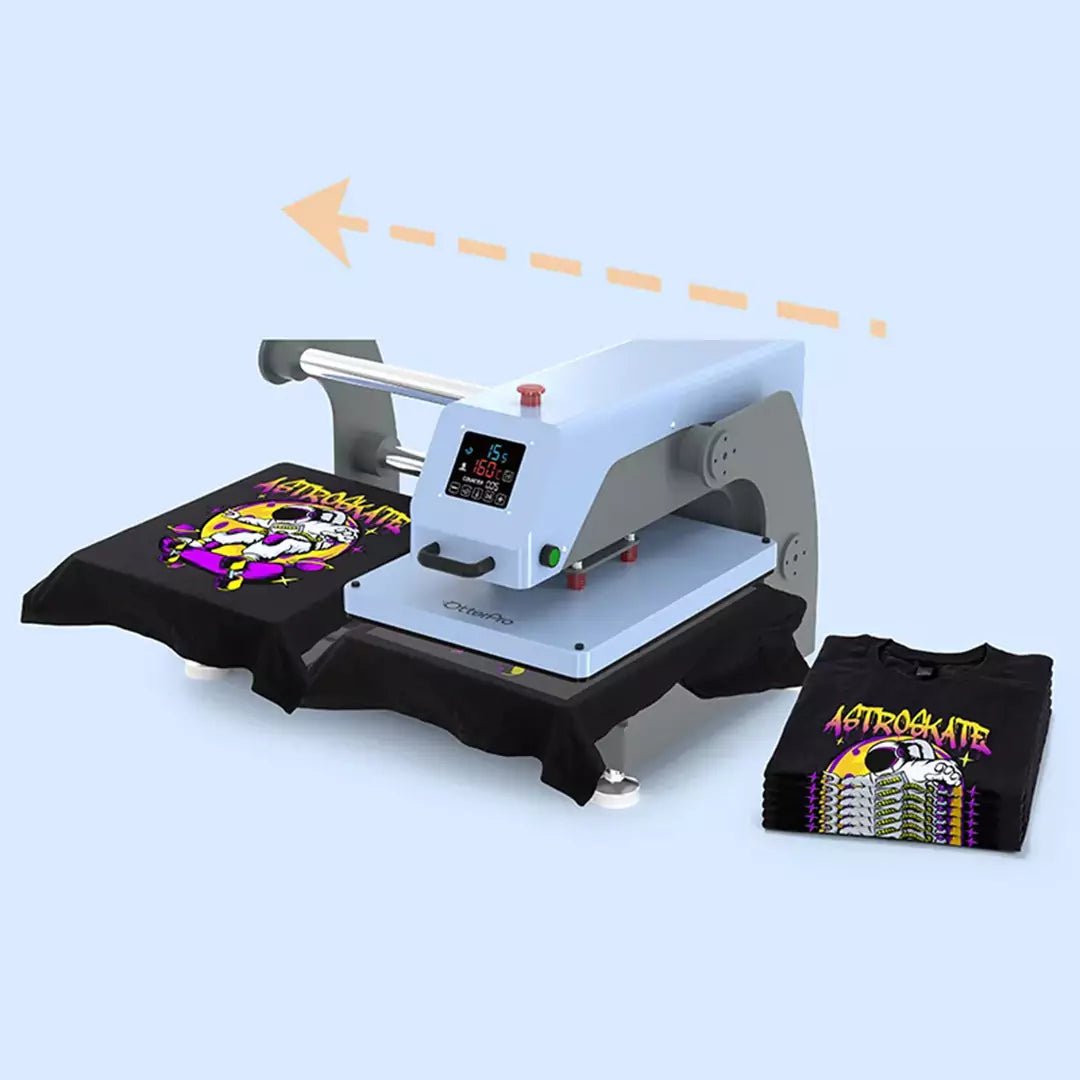

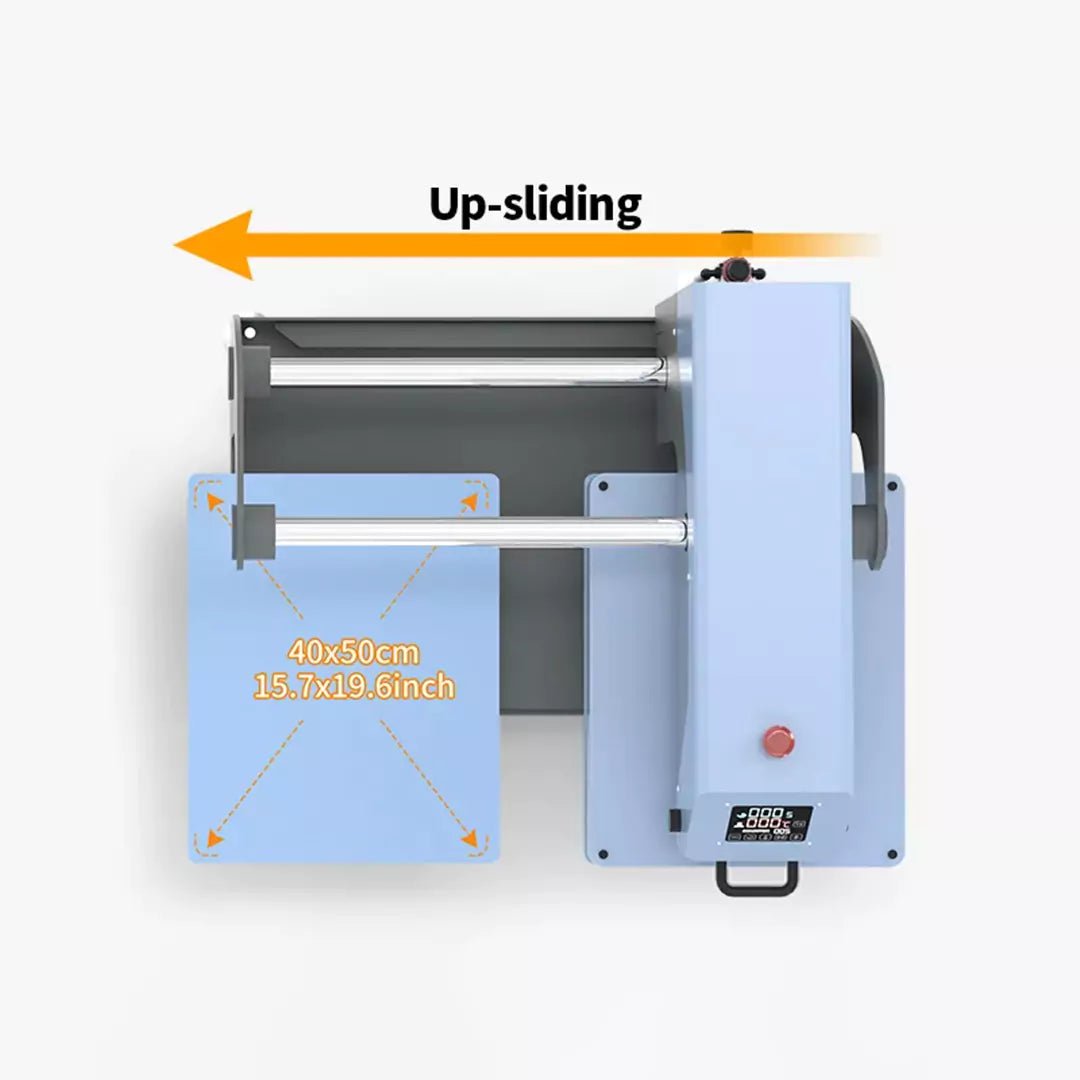

Dual-Station Slide System – Boost efficiency with two interchangeable workstations (40x50cm plates), allowing simultaneous loading and pressing for uninterrupted workflow.
Commercial-Grade Power – Available in 2200W (220V) or 1600W (110V) configurations to support high-volume operations.
Precision Digital Controls – Adjustable 0–250°C (482°F) temperature and 0–999-second timer for flawless transfers on various materials.

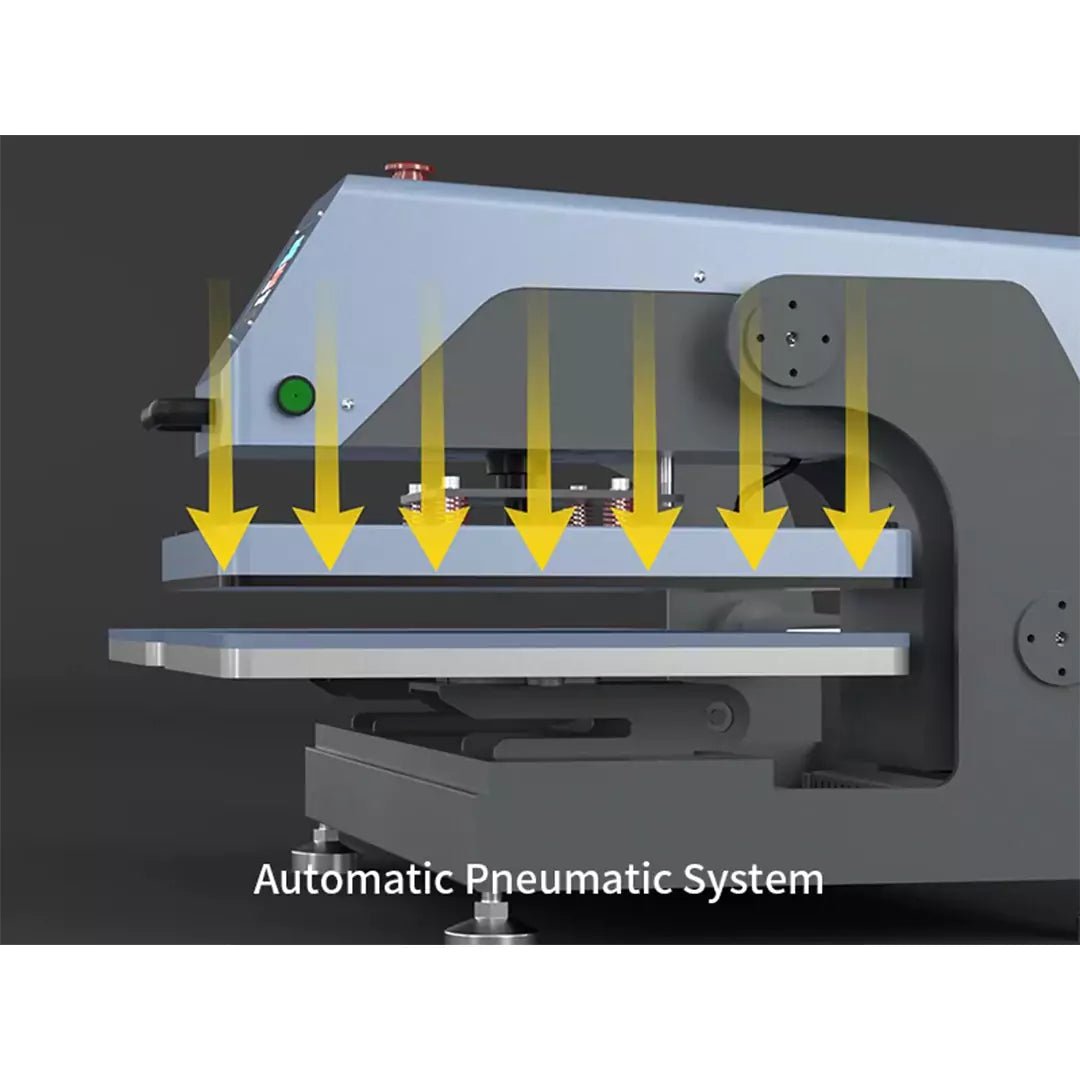

Heavy-Duty Construction – Industrial 105kg steel frame with air press technology for consistent, even pressure across the full 40x50cm heating area.
Large-Format Versatility – Accommodates full-size designs for apparel, textiles, and promotional products.

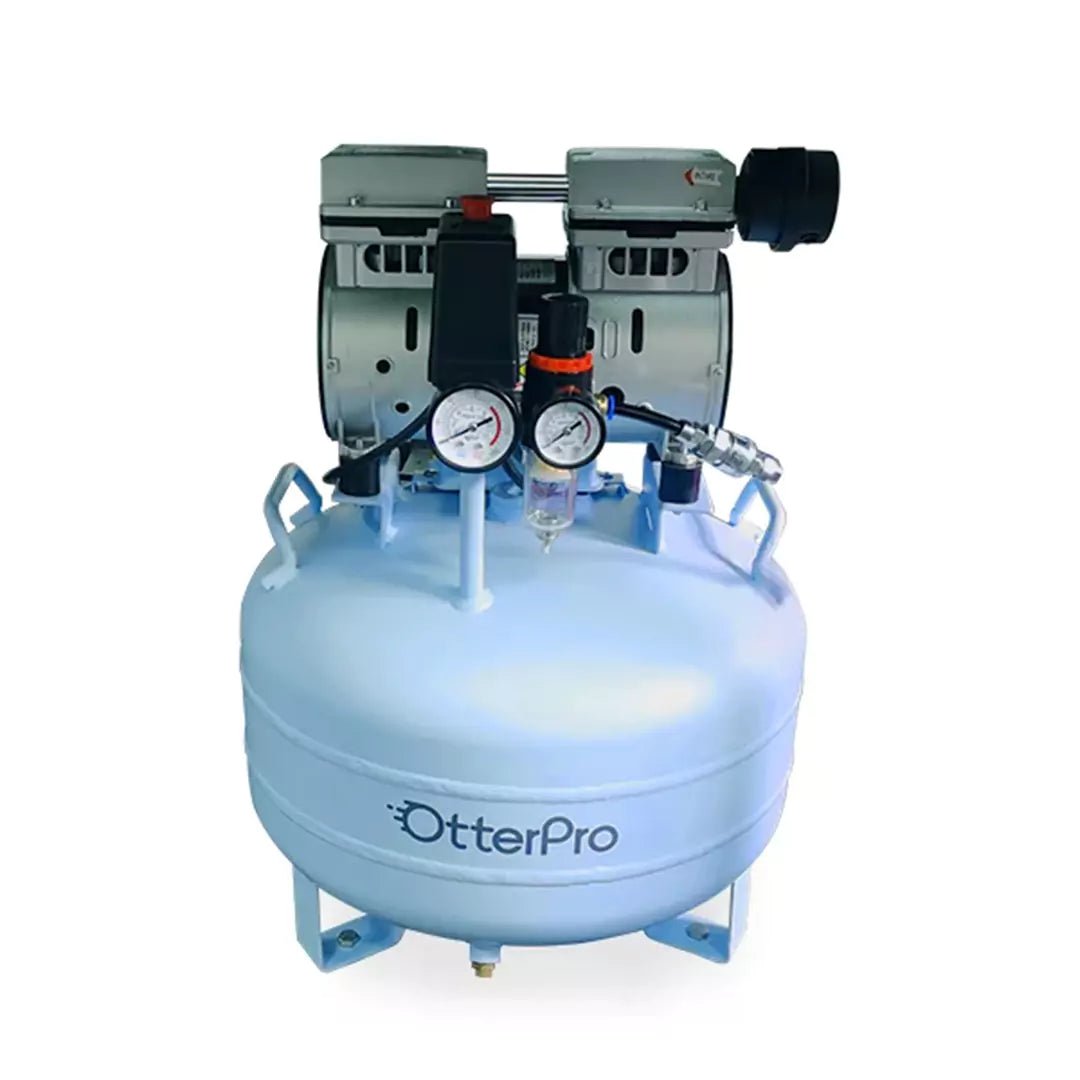

OtterPro 30L Silent Air Compressor – Optimized for Heat Press Machines
High-Capacity 30L Tank – Ensures stable air pressure for continuous heat press cycling.
Powerful 550W Motor – Supports 100L/min airflow and 0.8MPa max pressure for rapid, efficient operation.
Dual Voltage (110V/220V) – Adaptable to different workshop electrical systems.
Compact & Portable – Space-saving 40×40×56cm design (2.3kg) ideal for small to medium production spaces.

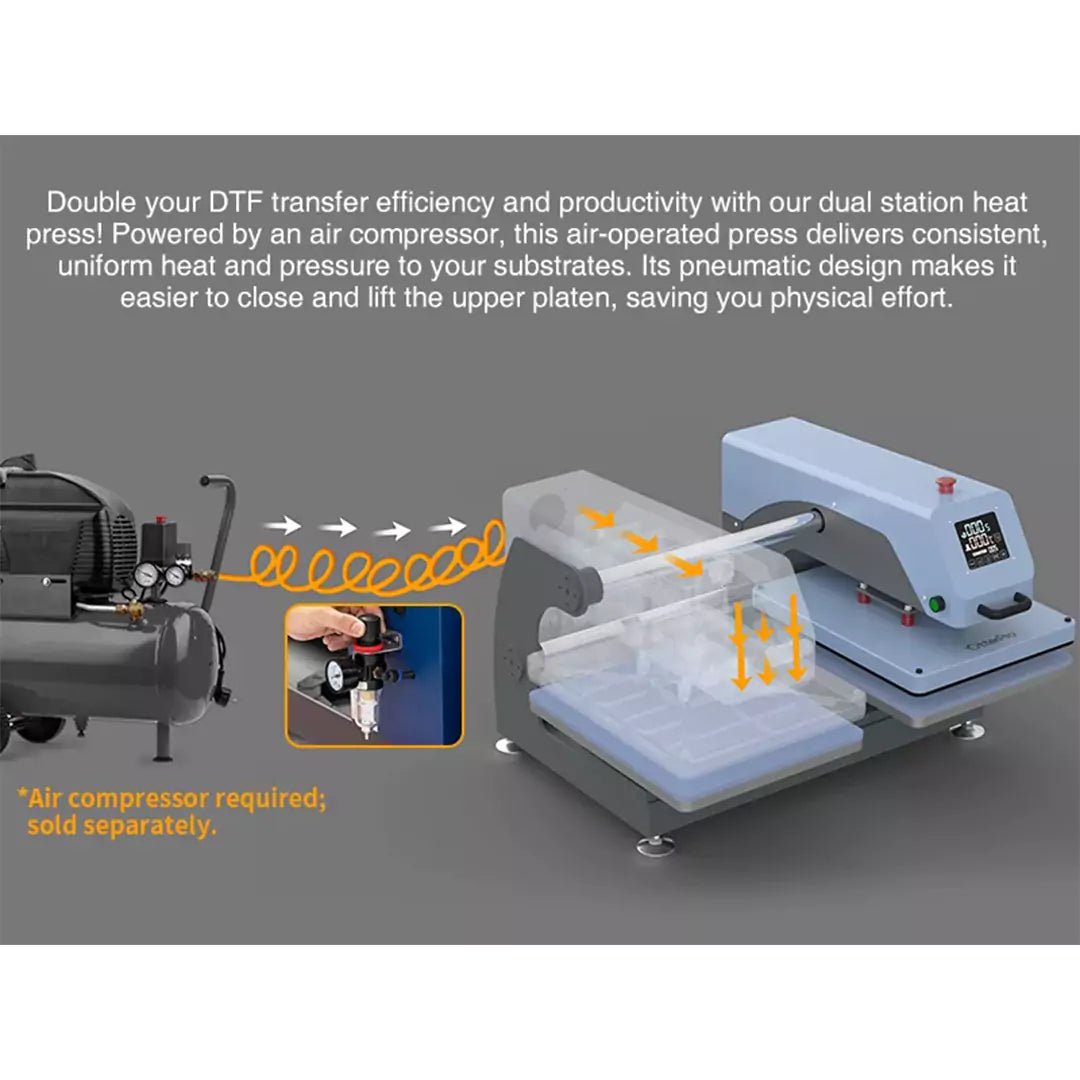

Heat Press Optimized – Engineered specifically for seamless integration with air press heat transfer systems.
Technical Specifications
Heat Press:
Model: OT-QSH4050LB (Light Blue)
Plate Size: 40x50cm (16"x20")
Voltage Options: 220V (2200W) / 110V (1600W)
Temperature Range: 0–250°C (482°F)
Timer: 0–999 seconds
Dimensions: 913 × 847 × 592mm
Net Weight: 105kg (wooden case packaging)
Air Compressor:
Model: OT-KYJ30LB
Tank Capacity: 30L
Airflow: 100L/min
Max Pressure: 0.8MPa
Power: 550W (110V/220V)
Dimensions: 40×40×56cm
Net Weight: 2.3kg
Ideal Applications
Commercial garment printing & sublimation
Custom apparel & promotional product manufacturing
High-volume textile decoration businesses
Professional printing workshops & industrial setups
Package Includes
1 × OtterPro Air Press Slide Dual Station Heat Press (40x50cm, Light Blue)
1 × OtterPro 30L Silent Air Compressor (550W, 100L/min)
