ViewSonic PA503W – 4000-Lumen WXGA Business and Education Projector

ViewSonic PA503W – 4000-Lumen WXGA Business and Education Projector

The ViewSonic PA503W is a high-brightness WXGA projector designed to deliver sharp, vibrant visuals in business meeting rooms, classrooms, and multimedia applications. With 4,000 ANSI lumens, an extended lamp life of up to 15,000 hours, and SuperColor™ technology, this projector ensures exceptional color accuracy, energy efficiency, and long-term performance.

Superior Brightness and Image Clarity

Equipped with 4,000 ANSI lumens, the PA503W ensures bright and clear images, even in well-lit environments. The 22,000:1 contrast ratio enhances the depth and sharpness of visuals, ensuring that presentations, text, and videos are displayed with high clarity and precision.

WXGA Resolution for Crisp and Detailed Visuals

With a native WXGA (1280x800) resolution, the PA503W delivers sharper and more detailed images compared to standard SVGA projectors. It supports resolutions up to Full HD (1920x1080), making it ideal for presentations, graphics, and video playback.

SuperColor™ Technology for Enhanced Color Accuracy

ViewSonic’s proprietary SuperColor™ technology expands the color range, ensuring richer and more accurate colors in both bright and dark environments. This guarantees that presentations, images, and videos retain their vibrancy and realism.

Five Optimized Viewing Modes for Any Application

The PA503W offers five preset viewing modes for optimal image performance:

• Brightest Mode – Maximizes brightness for well-lit environments.
• Presentation Mode – High brightness and contrast for text-heavy slides.
• Standard Mode – Color-balanced mode for general content viewing.
• Photo Mode – Enhances image quality for photo-based content.
• Movie Mode – Adjusts colors and contrast for an immersive cinematic experience.

Immersive 3D Viewing

The PA503W supports Full 3D content via HDMI, allowing users to project 3D visuals from Blu-ray players, gaming consoles, and media devices for an immersive experience.

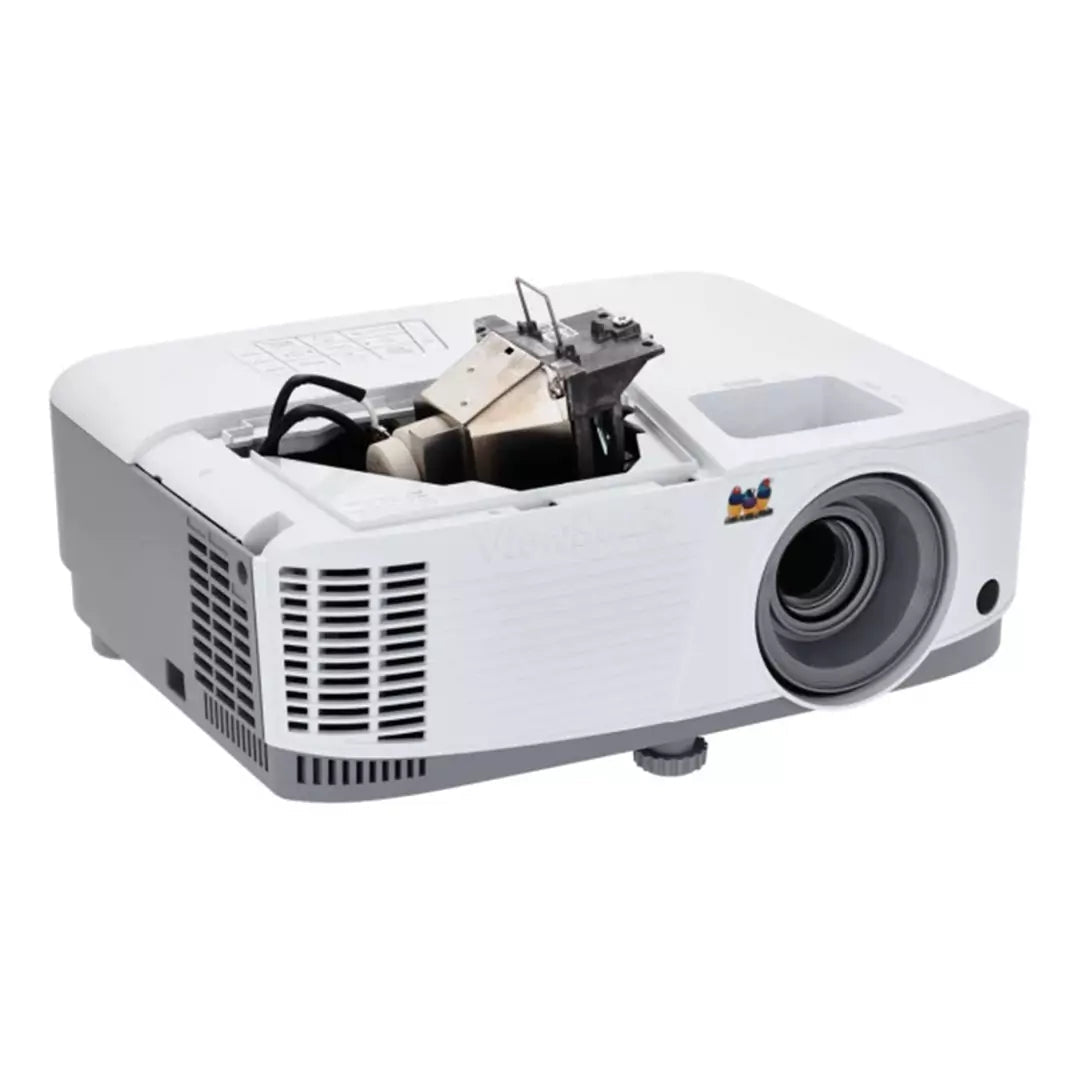

Energy-Efficient Lamp Life Extension

The PA503W features multiple power-saving modes that help reduce energy consumption and extend lamp life up to 15,000 hours:

• Eco Mode – Automatically activates when idle for 5 minutes, switching from Normal to Eco Mode.
• SuperEco Mode – Dims brightness by 70% after 20 minutes of inactivity, extending lamp life significantly.
• Auto Power Off – Automatically shuts down the projector when no signal is detected, conserving energy and extending longevity.
• Sleep Timer – Allows users to set an automatic sleep schedule after a predefined period of inactivity.

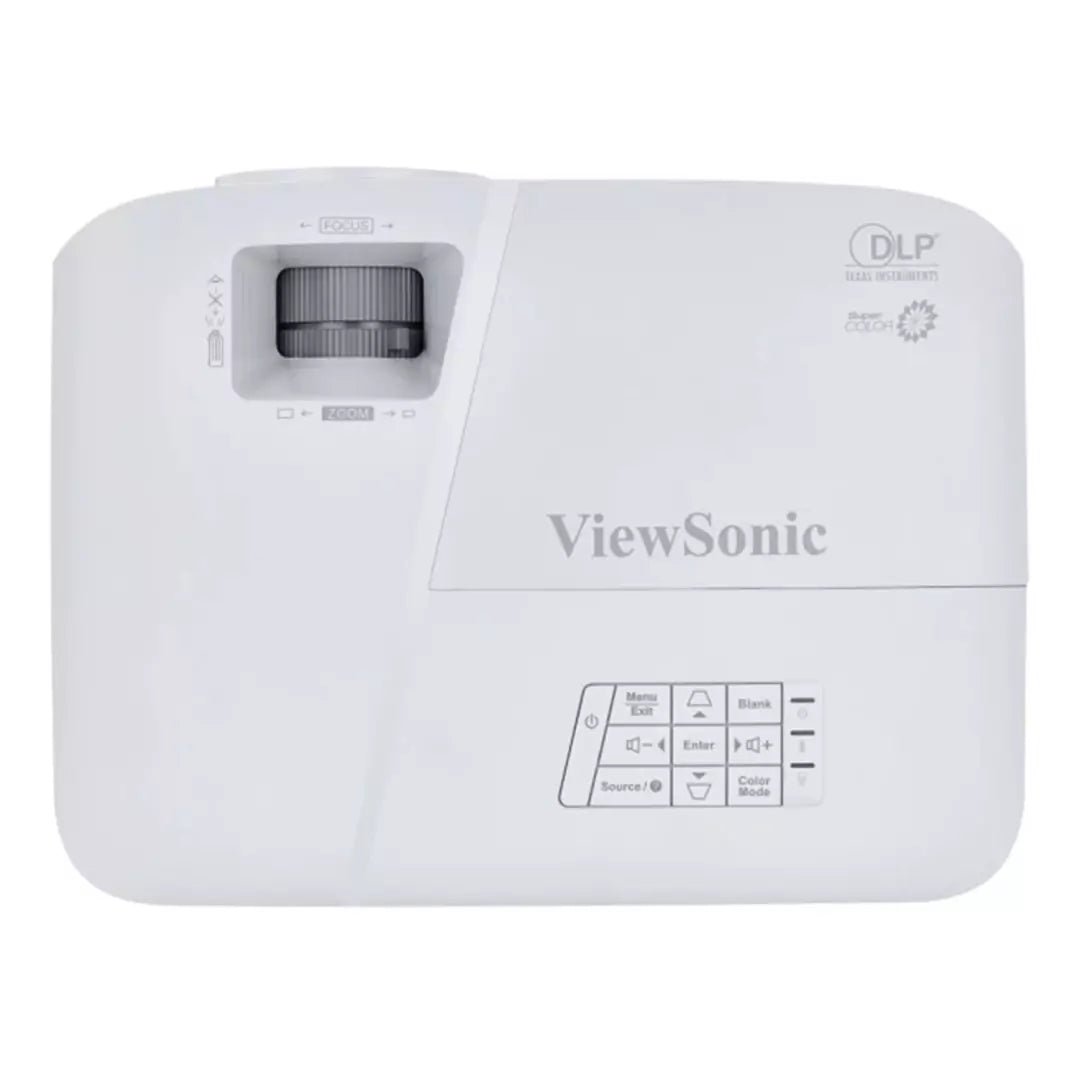

User-Friendly and Smart Features

• Instant Activation – Features Direct Power On (turns on when plugged in) and Signal Power On (activates when a VGA signal is detected).
• Vertical Keystone Correction – Corrects distorted images, ensuring a properly aligned display.
• Presentation Timer – Helps users manage presentation timing with on-screen alerts.
• Blank Timer – Allows presenters to black out the screen to refocus audience attention.

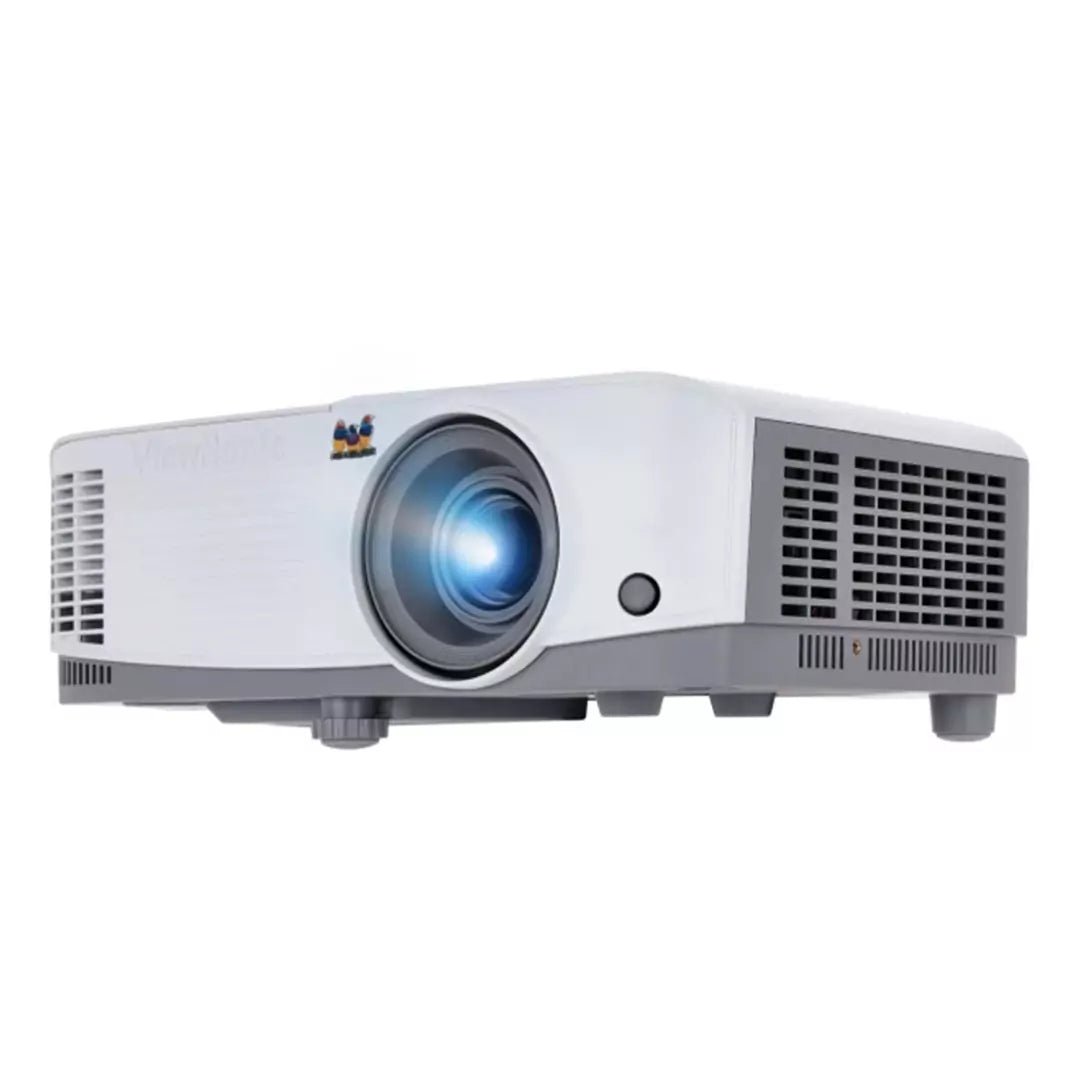

Compact, Lightweight, and Portable

Weighing only 2.2 kg, the PA503W is lightweight and easy to transport, making it a great choice for mobile professionals, teachers, and business users. Its compact size (294 x 218 x 110 mm) allows for easy installation and storage.

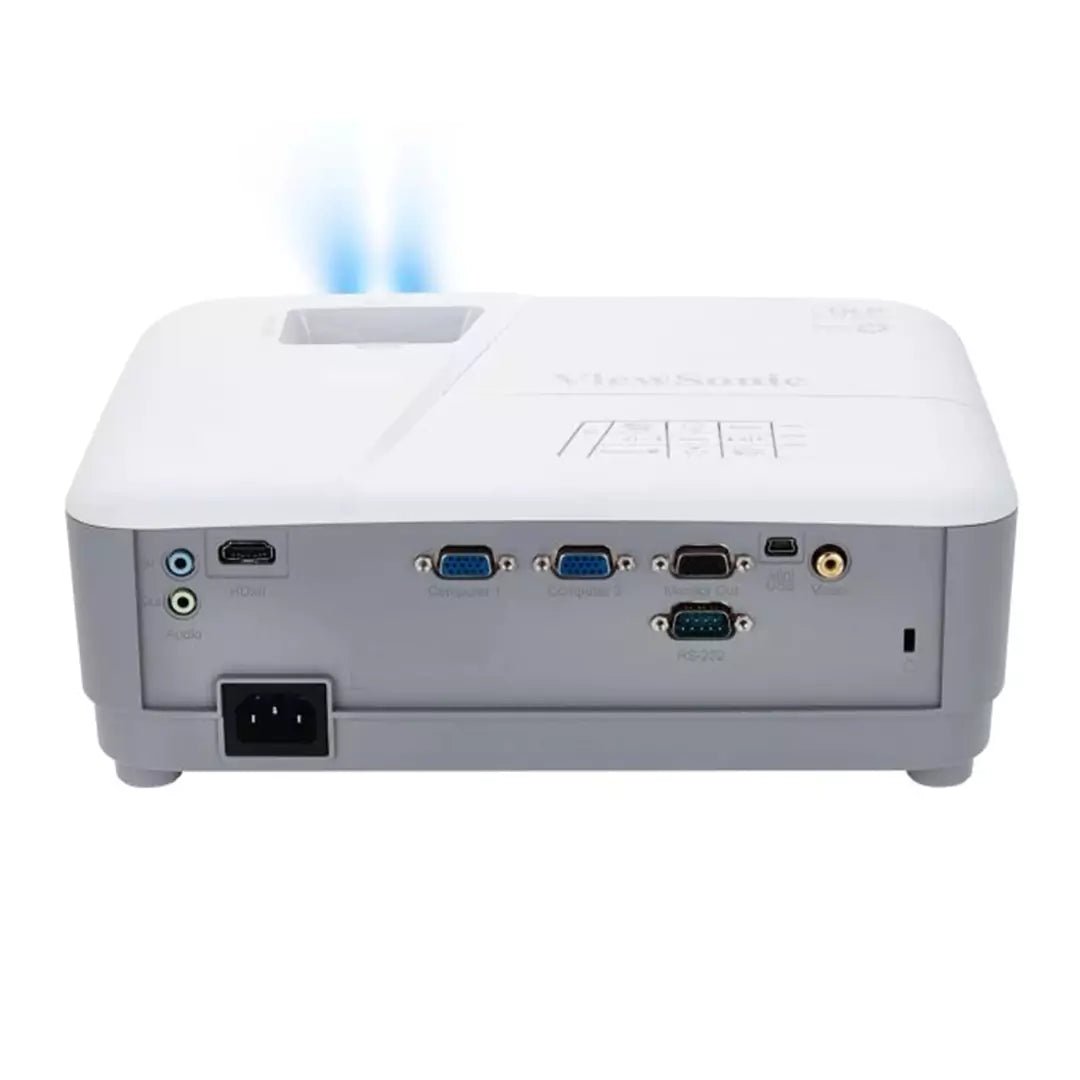

Comprehensive Connectivity Options

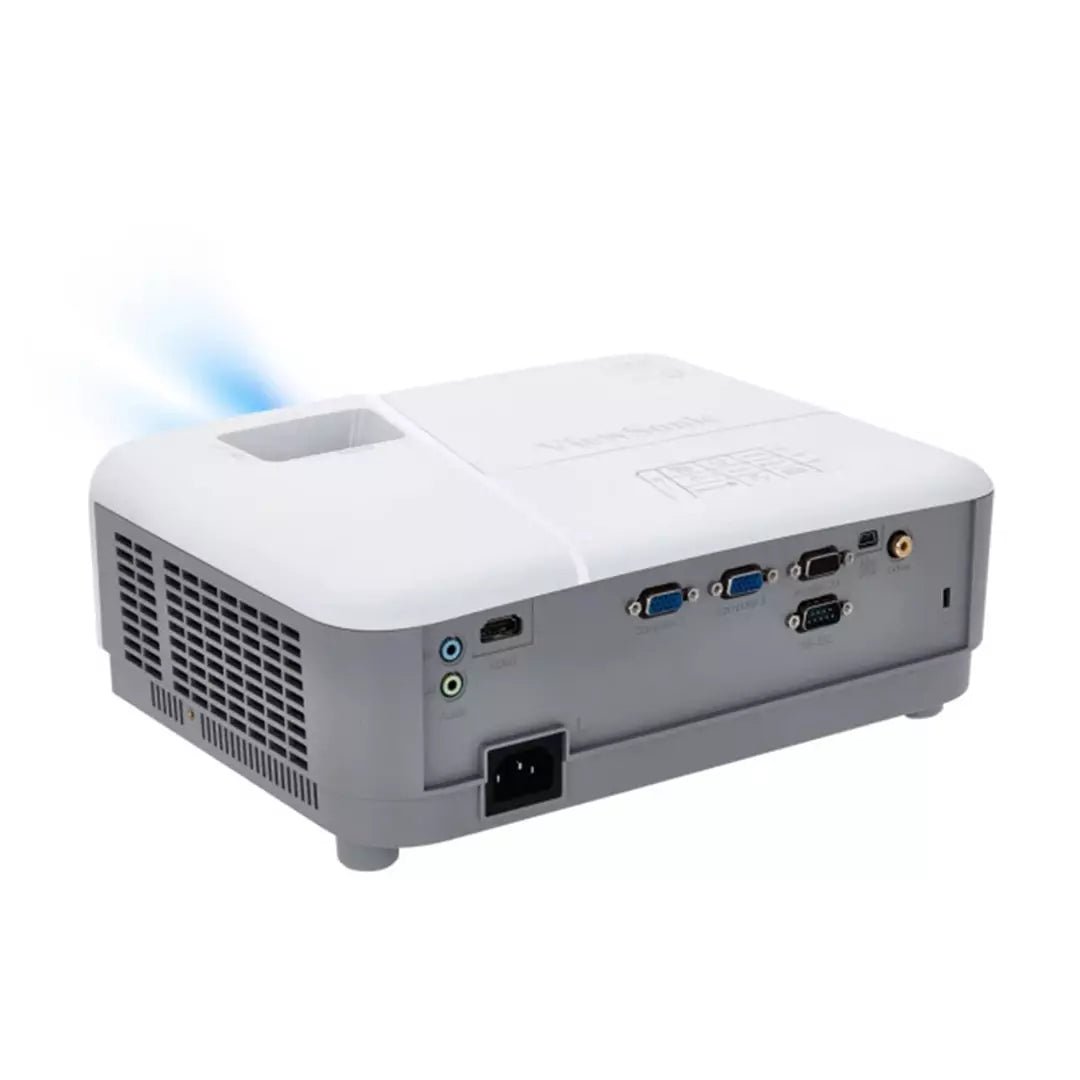

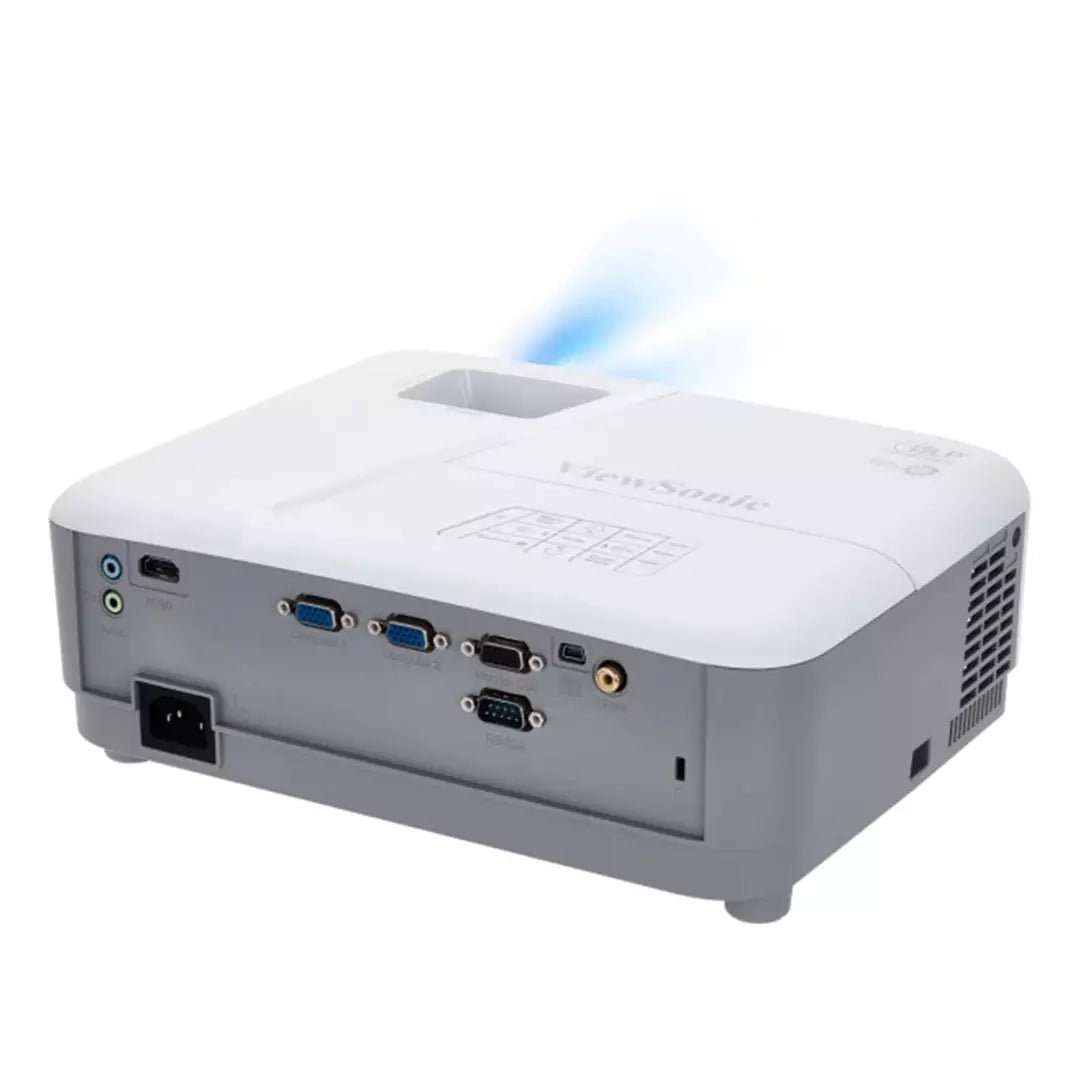

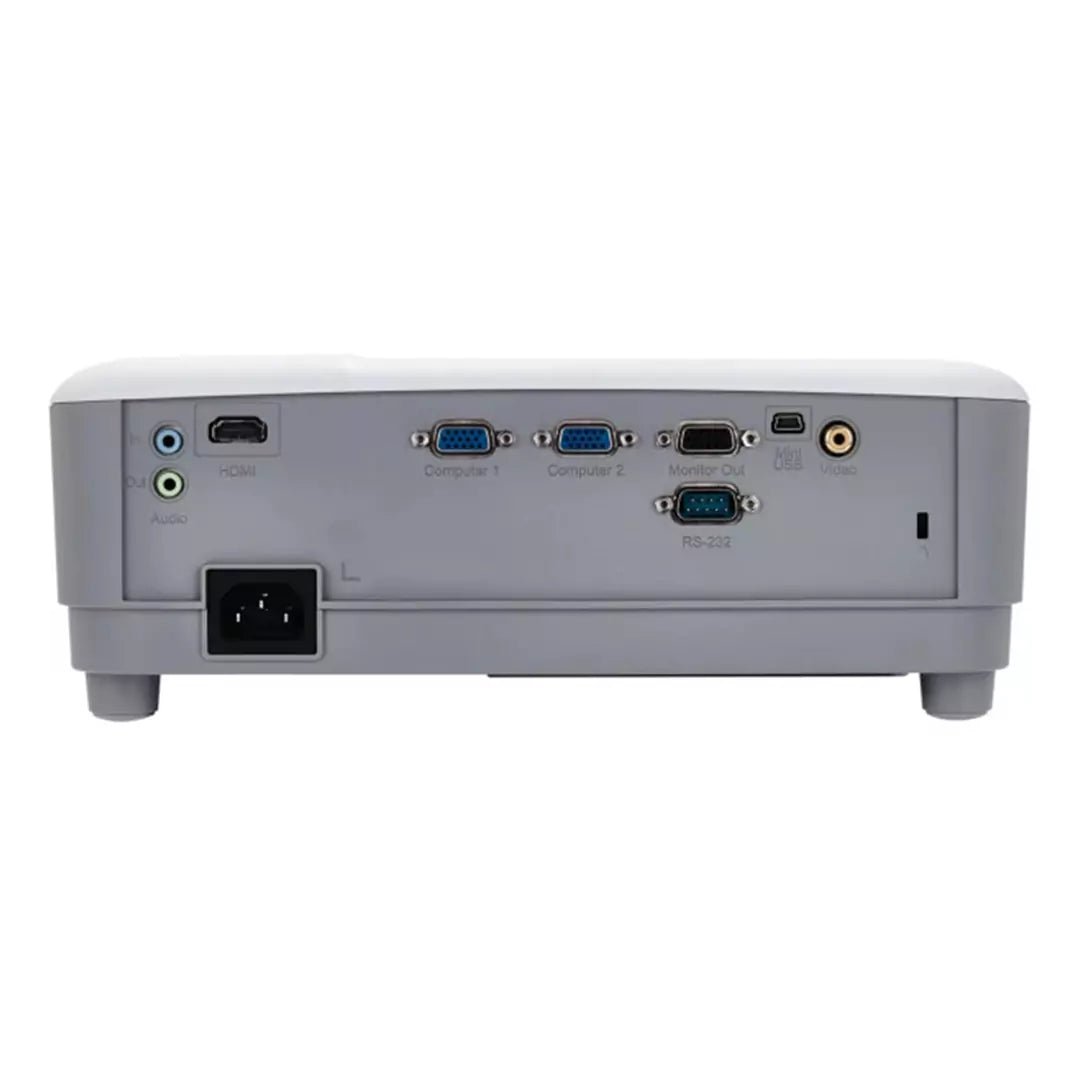

The PA503W provides multiple connectivity options for easy integration with various devices:

• Inputs: 1 x HDMI 1.4, 2 x VGA, 1 x Composite Video, 1 x Audio-in (3.5mm)
• Outputs: 1 x VGA, 1 x Audio-out (3.5mm)
• Control Ports: RS232, USB Mini-B (for service updates)

Technical Specifications

• Projection System: DLP™
• Native Resolution: WXGA (1280x800)
• Brightness: 4,000 ANSI lumens
• Contrast Ratio: 22,000:1
• Lamp Life: Up to 15,000 hours (SuperEco Mode)
• Throw Ratio: 1.55 - 1.70
• Image Size: 30" - 300"
• Keystone Correction: ±40° Vertical
• Built-in Speaker: 2W
• Noise Level: 31dB (Normal), 27dB (Eco Mode)
• Weight: 2.2 kg
• Dimensions: 294 x 218 x 110 mm

Why Choose the ViewSonic PA503W?

• Ultra-bright 4,000 lumens ensures clear visibility in any lighting condition.
• SuperColor™ technology for richer, more vibrant visuals.
• Extended lamp life of up to 15,000 hours reduces maintenance costs.
• Multiple connectivity options including HDMI, VGA, and Composite Video.
• Supports Full 3D content via HDMI for immersive multimedia experiences.
• Compact and lightweight design for easy portability and installation.
• Energy-saving features that reduce power consumption and extend longevity.

The ViewSonic PA503W is a powerful, cost-effective projector that delivers exceptional brightness, accurate color performance, and smart energy-saving features. Whether for business presentations, educational lectures, or multimedia entertainment, this projector ensures professional and reliable performance with minimal maintenance.
