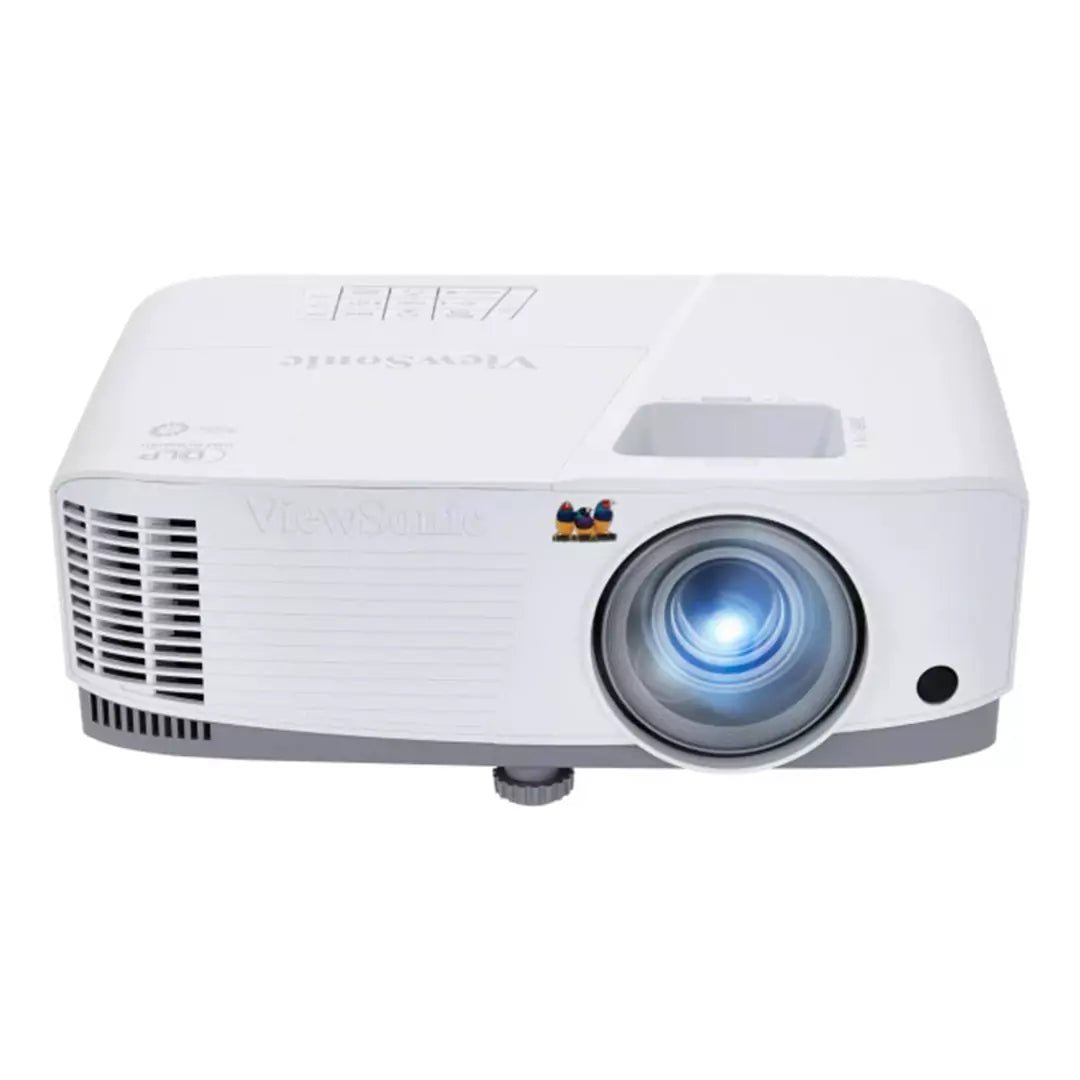

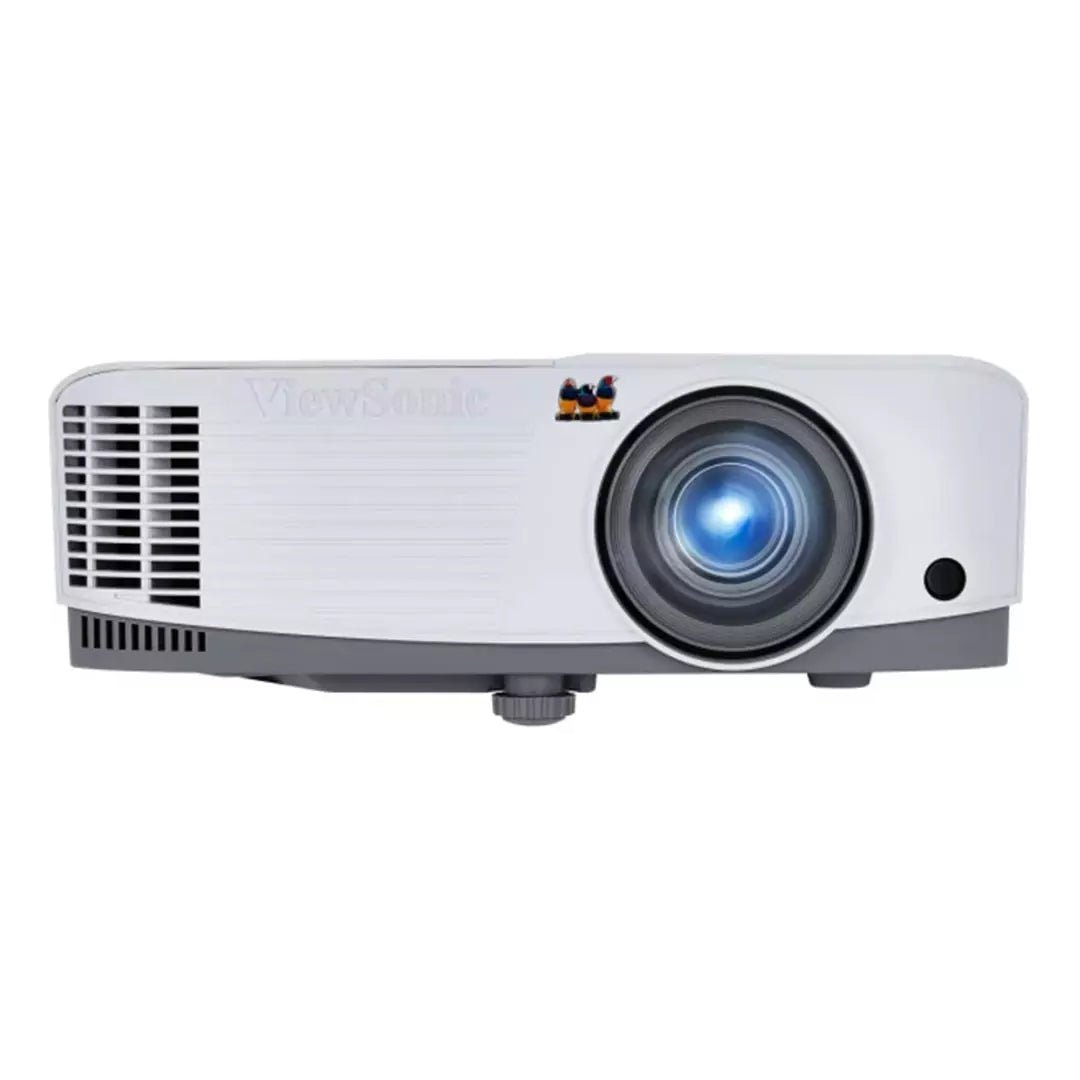

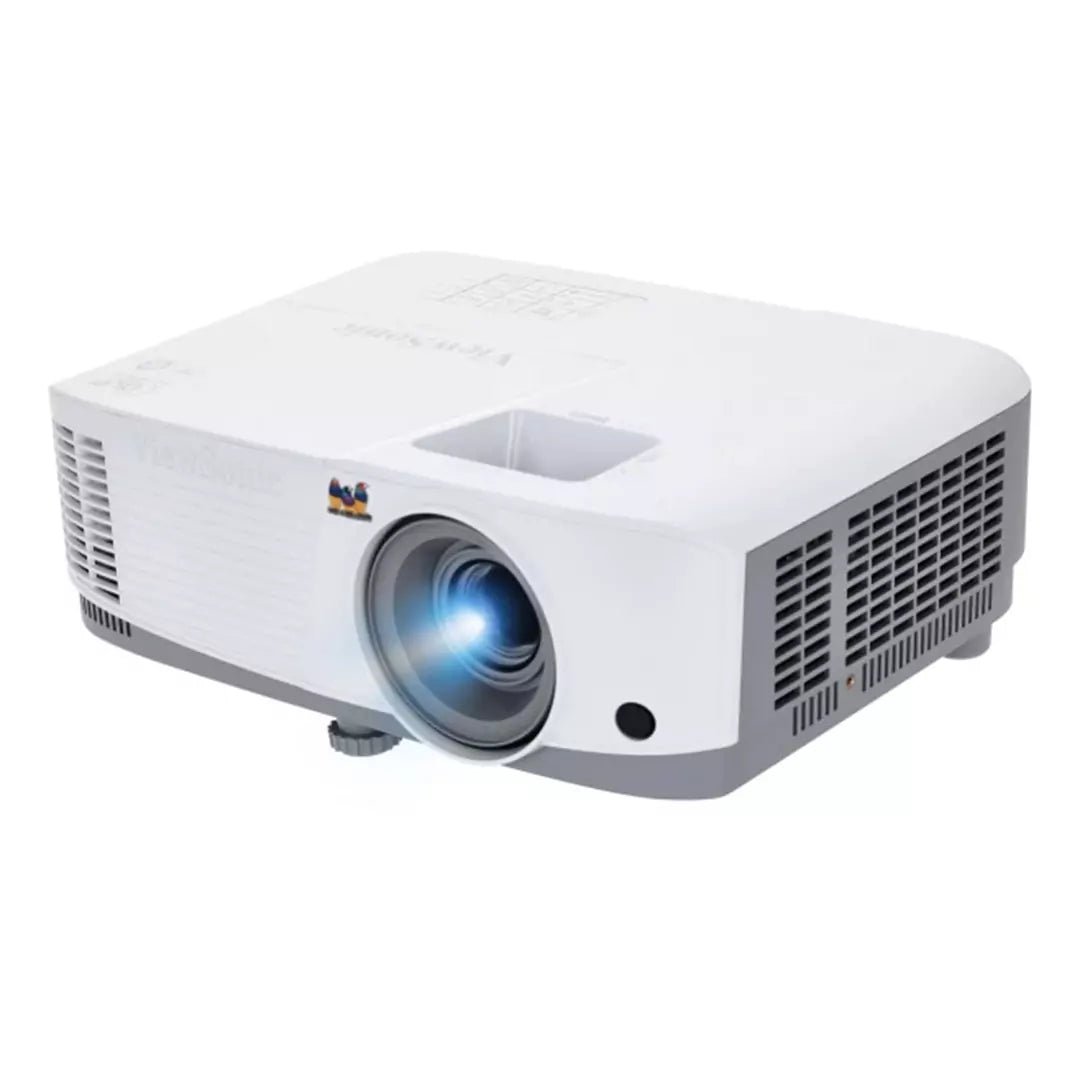

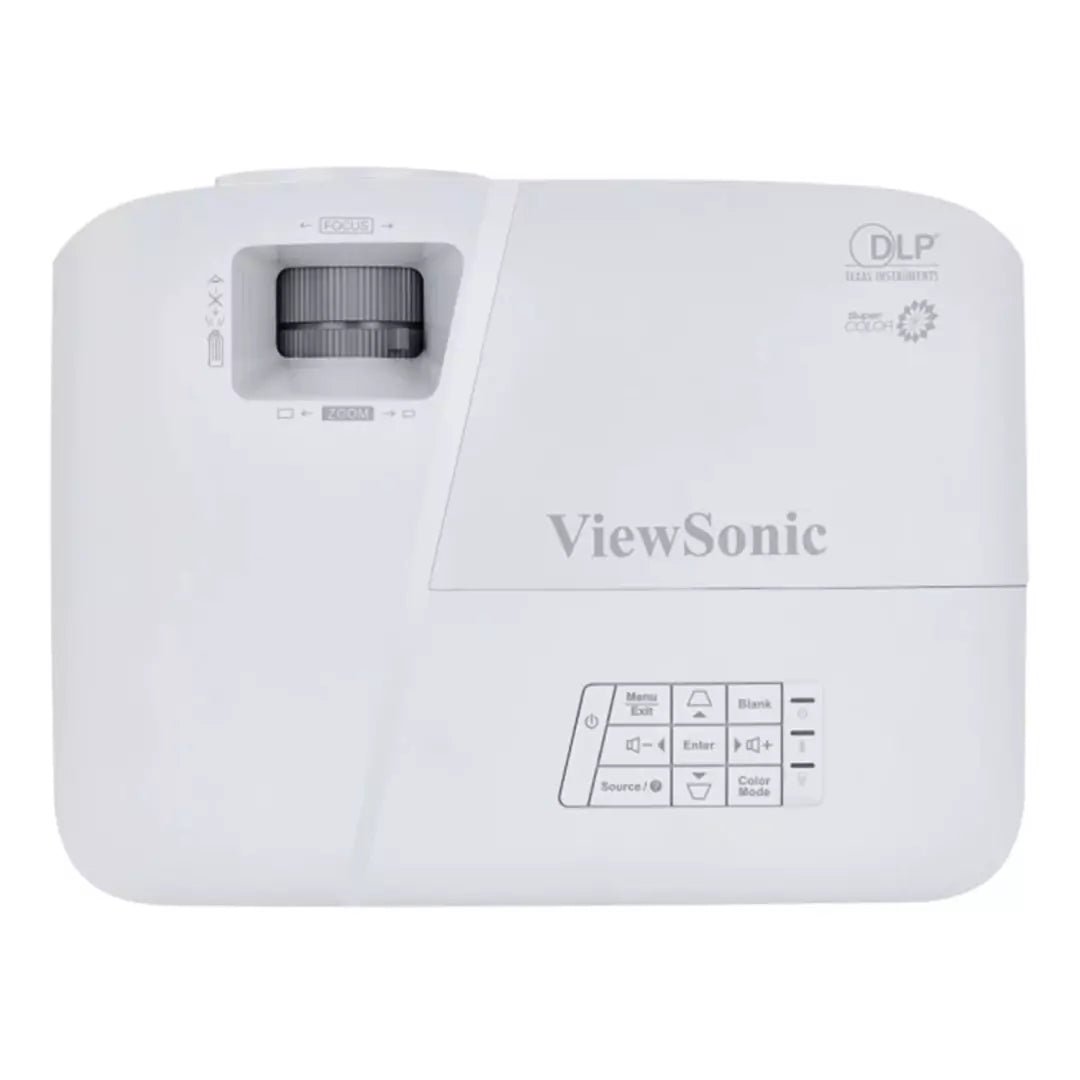

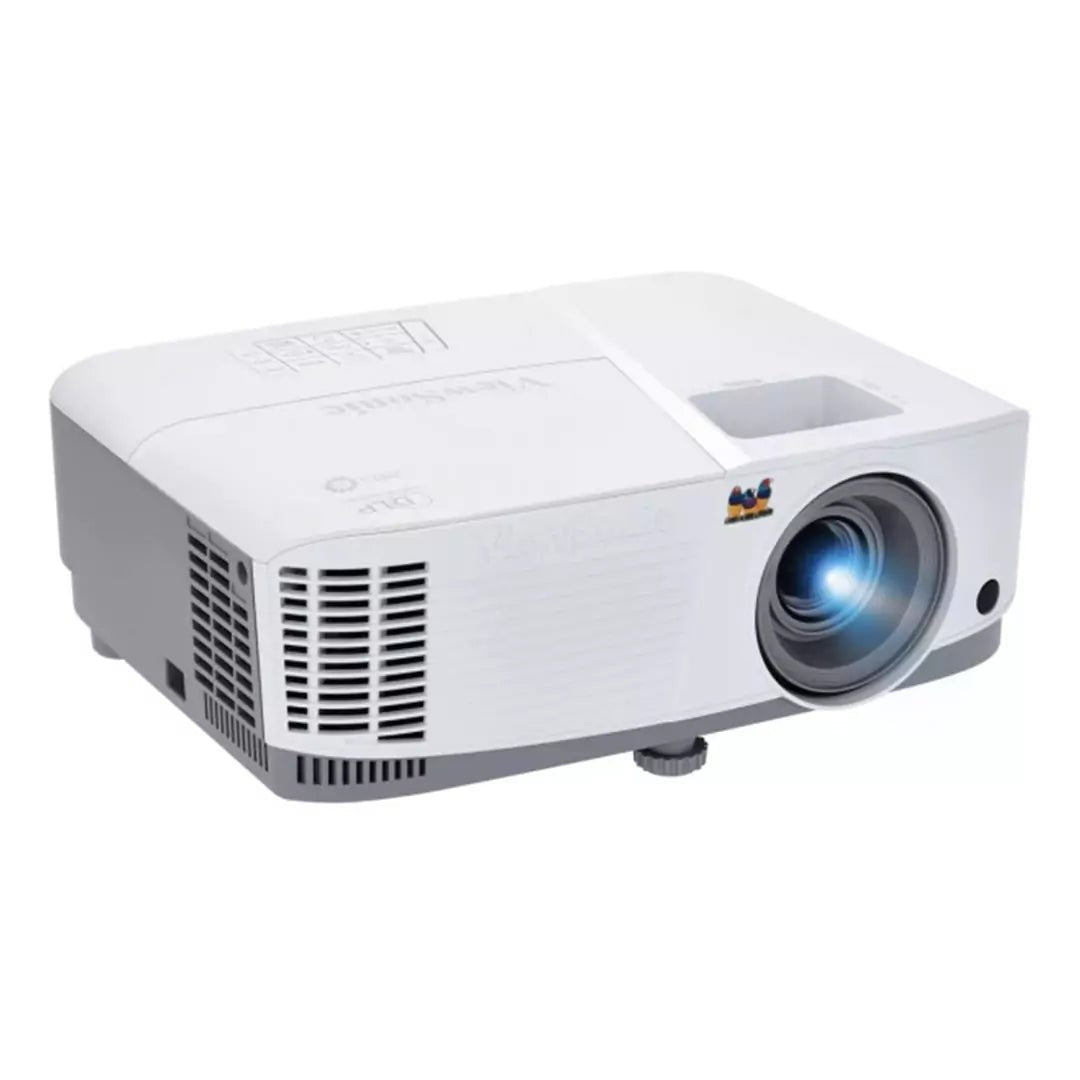

ViewSonic PA503XE – 4000-Lumen XGA Business and Education Projector

ViewSonic PA503XE – 4000-Lumen XGA Business and Education Projector

The ViewSonic PA503XE is a high-brightness XGA projector designed to enhance presentations, lectures, and business meetings with sharp visuals, vibrant colors, and long-lasting performance. Packed with 4,000 ANSI lumens and a 22,000:1 contrast ratio, this projector ensures clear and bright images even in well-lit environments, making it an ideal solution for classrooms, small offices, and conference rooms.

With SuperColor™ Technology, five optimized color modes, and an energy-saving SuperEco mode that extends lamp life up to 15,000 hours, the PA503XE provides long-term reliability, low maintenance costs, and an exceptional viewing experience.

Superior Brightness and Crisp Image Quality

The PA503XE offers 4,000 ANSI lumens of brightness, ensuring that images remain clear and vibrant even in rooms with high ambient light. Its 22,000:1 contrast ratio enhances text clarity, making it ideal for presentations, spreadsheets, and detailed documents.

Sharp and Detailed XGA Resolution

With a native XGA resolution (1024x768), the PA503XE delivers sharp and clear visuals, making it perfect for business presentations, educational lectures, and multimedia content. The projector also supports Full HD (1920x1080) resolution, offering versatile compatibility with various devices.

SuperColor™ Technology for Enhanced Color Accuracy

ViewSonic’s SuperColor™ Technology expands the color range, ensuring richer, more vibrant visuals for true-to-life images. This guarantees that graphics, videos, and presentations maintain excellent color accuracy and depth in both bright and dark environments.

Five Optimized Viewing Modes for Any Application

The PA503XE features five preset viewing modes for different usage scenarios:

• Brightest Mode – Maximizes brightness for well-lit environments.
• Presentation Mode – High contrast for text-heavy slides and detailed visuals.
• Standard Mode – Balanced color and contrast, similar to a PC monitor.
• Photo Mode – Natural colors for viewing images and graphics.
• Movie Mode – Saturated colors and enhanced contrast for cinematic experiences.

Full 3D Support for Immersive Viewing

The PA503XE supports Full 3D content via HDMI, allowing users to project 3D visuals from Blu-ray players, gaming consoles, and media streaming devices for an engaging viewing experience.

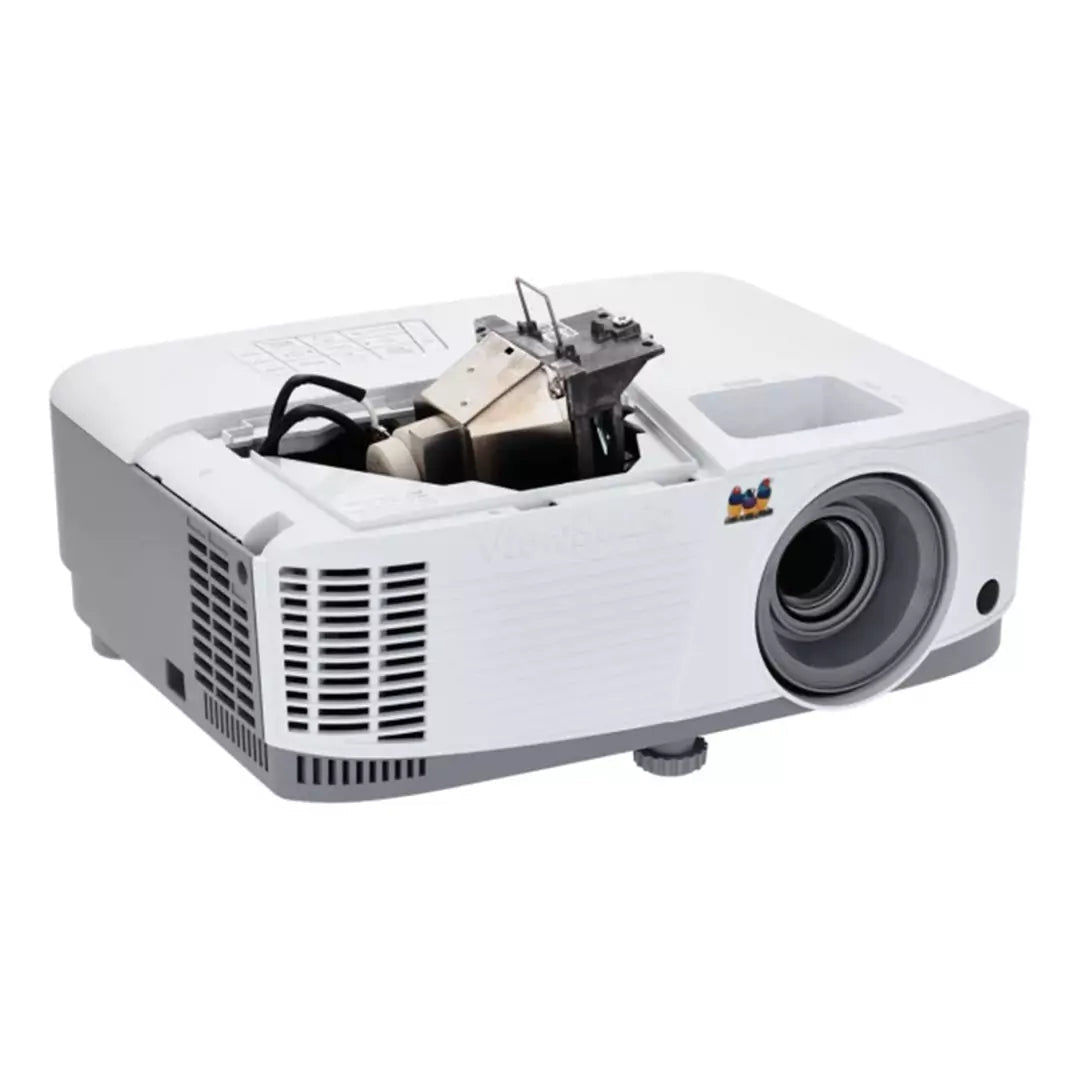

Energy-Efficient Lamp Life Extension

Designed for long-term use, the PA503XE incorporates energy-saving modes to reduce power consumption and extend lamp life:

• Eco Mode – Automatically activates after 5 minutes of inactivity, switching from Normal to Eco Mode.
• SuperEco Mode – Reduces brightness by 70% after 20 minutes of inactivity, extending lamp life to up to 15,000 hours.
• Auto Power Off – Automatically shuts down the projector when no signal is detected, helping conserve energy.
• Sleep Timer – Allows users to schedule automatic shutdowns after a set period of inactivity.

User-Friendly and Smart Features

• Instant Activation – Get started quickly with Direct Power On (activates when plugged in) and Signal Power On (activates when a VGA signal is detected).
• Vertical Keystone Correction – Adjusts image distortion for perfectly aligned visuals.
• Presentation Timer – An on-screen timer helps presenters manage time effectively.
• Blank Timer Feature – Allows users to black out the screen to refocus audience attention.

Compact and Lightweight Design

Weighing only 2.2 kg, the PA503XE is highly portable and easy to transport, making it ideal for mobile professionals, teachers, and business users. Its compact size (294 x 218 x 110 mm) ensures easy installation in any setting.

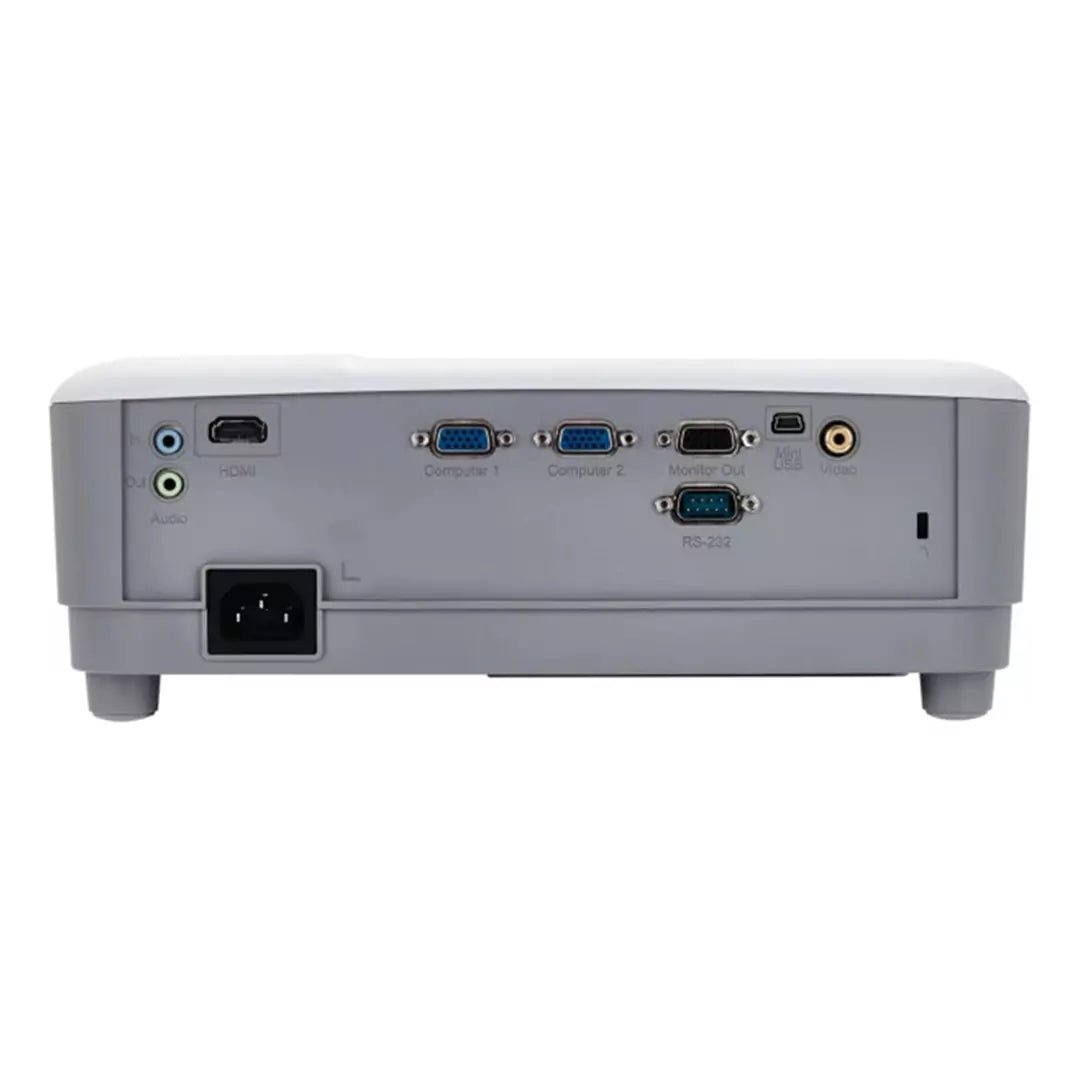

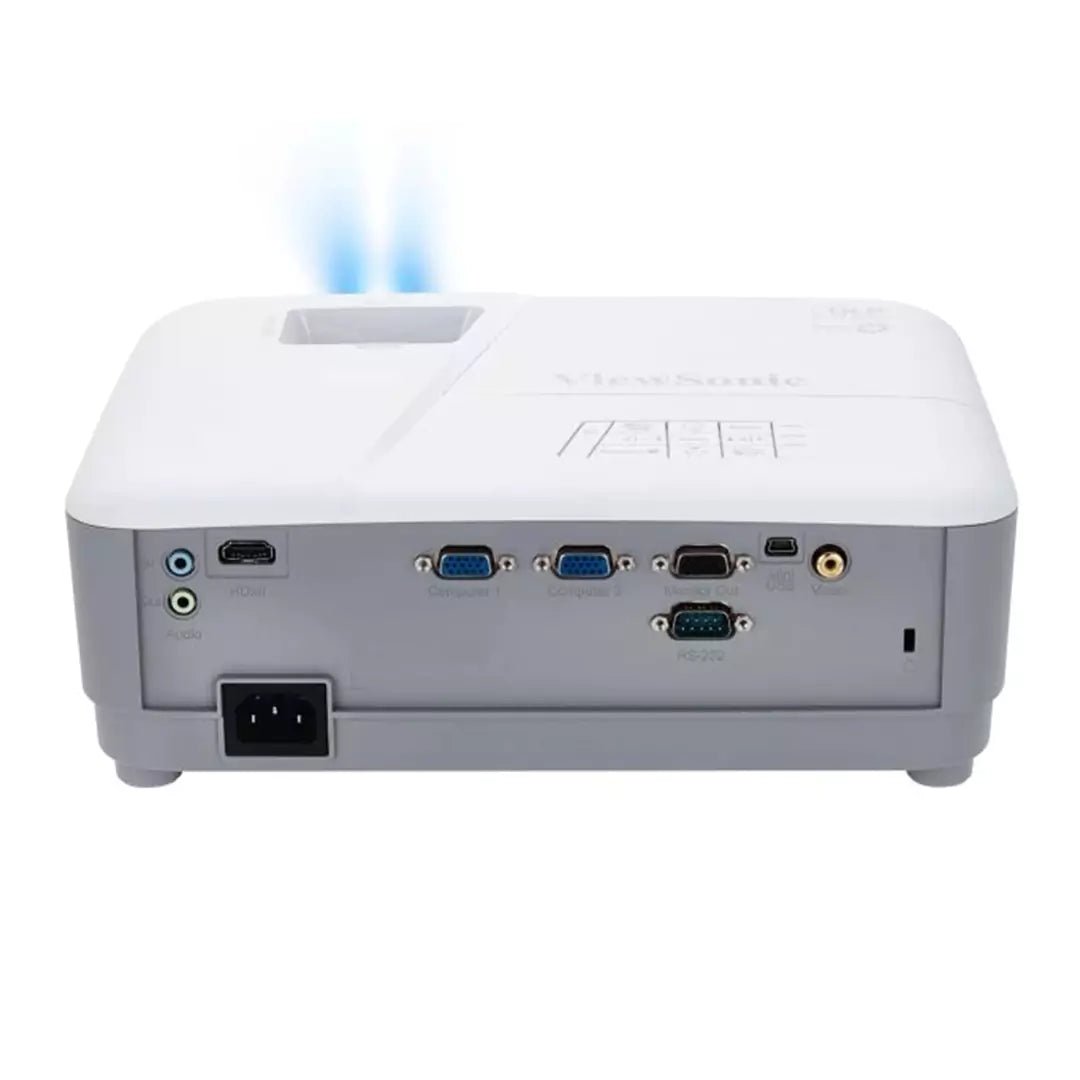

Comprehensive Connectivity Options

The PA503XE provides multiple connectivity options to ensure compatibility with a wide range of devices:

• Inputs: 1 x HDMI 1.4, 2 x VGA, 1 x Composite Video, 1 x Audio-in (3.5mm)
• Outputs: 1 x VGA, 1 x Audio-out (3.5mm)
• Control Ports: 1 x RS232, 1 x USB Mini-B (for service updates)

Technical Specifications

• Projection System: DLP™
• Native Resolution: XGA (1024x768)
• Brightness: 4,000 ANSI lumens
• Contrast Ratio: 22,000:1
• Lamp Life: Up to 15,000 hours (SuperEco Mode)
• Throw Ratio: 1.96 - 2.15
• Image Size: 30" - 300"
• Keystone Correction: ±40° Vertical
• Built-in Speaker: 2W
• Noise Level: 31dB (Normal), 27dB (Eco Mode)
• Weight: 2.2 kg
• Dimensions: 294 x 218 x 110 mm

Why Choose the ViewSonic PA503XE?

• Ultra-bright 4,000 lumens ensures clear visibility in any lighting condition.
• SuperColor™ technology for richer, more vibrant visuals.
• Extended lamp life of up to 15,000 hours reduces maintenance costs.
• Multiple connectivity options including HDMI, VGA, and Composite Video.
• Supports Full 3D content via HDMI for immersive multimedia experiences.
• Compact and lightweight design for easy portability and installation.
• Energy-saving features that reduce power consumption and extend longevity.

The ViewSonic PA503XE is a powerful, cost-effective projector designed for business meetings, educational presentations, and multimedia applications. With exceptional brightness, accurate color performance, and smart energy-saving features, this projector ensures professional and reliable performance with minimal maintenance.
